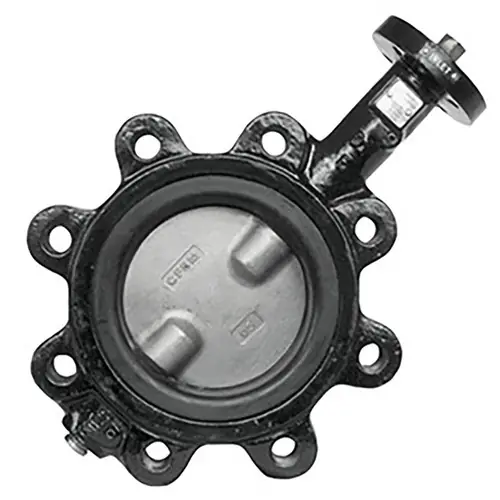

Jomar Valve 600 Series Epoxy-Coated Ductile Iron w/SS Disc Butterfly Valves, Nitrile Rubber Seals, Lug Style, Gear Handle

Description

Lug style butterfly valve designed for commercial and industrial applications up to 220 PSI. Series 600 Lug bodies are bi-directional for dead end service. 14 in. to 24 in. sizes come with gear operator handle. Features Ideal for mounting pneumatic/electrical actuators. Easily accepts actuator with ISO 5211 mounting flange Seat to flange seal eliminates the need for flange gaskets Ideal for mounting pneumatic/electrical actuators Square stem for direct mount Wetted surfaces contain less than .25% lead content Specifications 10°F to 180°F Temperature range 2 in. to 12 in. 220 PSI / 14 in. to 24 in. 150 PSI inline service Epoxy-Coated Ductile Iron Body Nitrile Rubber seal 410 Stainless Steel lower and upper shaft CF8M Stainless steel disc PTFE bushing EPDM O-ring Meets API 609 & MSS SP-67 NSF 61 / NSF 371 certified Downloads Product Manual (PDF Download)
