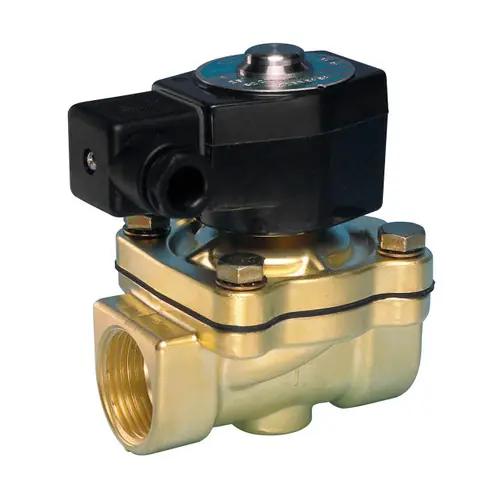

Jefferson Valves 1335 Series 1/2 in. Normally Closed Brass General Purpose 2-Way Solenoid Valve w/ Nitrile Rubber Seal

Description

Jefferson Valves 1335 Series 1/2 in. Normally Closed Brass Solenoid Valve Jefferson Valves Solenoid Valves are used in a great variety of systems and different industrial areas that handle water, air, steam, light oils, neutral gases and cryogenic fluids, from vacuum to high pressure and high temperature. Please contact us for additional valve configurations, sizes and voltages not listed. This valve comes in 110V AC, 120V AC and 24V DC voltage options. Shop the JME site for the best selection of Jefferson Valve solenoid valves today.FeaturesNormally closed with hung diaphragm, combined actionForged brass bodyNPT threaded connectionsShape B DIN 43650 connection encapsulated coilsUL, CSA, and CE certifiedIP65 and NEMA4 protectionSpecificationsSize: 1/2 in. NPTOrifice: .55 in. (14 mm)Flow Factor: 3.1 Cv (2.65 Kv)Body Material: BrassSeal Material: Nitrile Rubber (Nitrile), Please contact us for additional seal options.Maximum Pressure:AC: 105 PSI (7 Bar)DC: 90 PSI (6 Bar)Maximum Operating Temperature: 176°F (80°C)ApplicationsWashing machinesLubricated air, hot air, dry air, etc.Oxygen and acetylene equipmentFuel oil and gas burnersVacuum systemsDownloadsDimensional Drawing (PDF Download)Specification Sheet (PDF Download)
