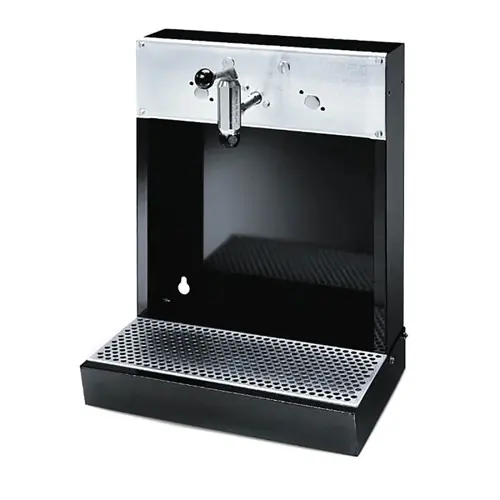

Graco 220107 Oil Dispenser Bar Cabinet, 1/2 in. Inlet

Description

Used for low volume dispense of petroleum-based lubricants. Modular convenient design allows up to 2 oil dispense taps or 3 meters to be added at the time of installation, or later if required. For professional use only. Tough metal cabinet with baked-on enamel finish. Constructed with single-dispense tap and waste pan with plated, perforated metal service area and drain connection.For use with: motor oil, gear oil, automatic transmission fluid, and oil and fluid dispense applications. Dispenser only with 1 dispense tap, if need 2 or 3 dispense taps call a JME Sales Specialist for detials at 800-333-3331. Specifications Drain Hose Size: 3/4 in. NPT Fluid Inlet Size: 1/2in. NPT Maximum Working Pressure (MPa): 6.2 Maximum Working Pressure (PSI): 900 Comes with one dispense tap, 3 madispense taps Overall Height: 22.6 in. Overall Length: 13.25 in. Overall Width: 18.3 in. Weight: 35 lbs Downloads Instructions (PDF Download)
