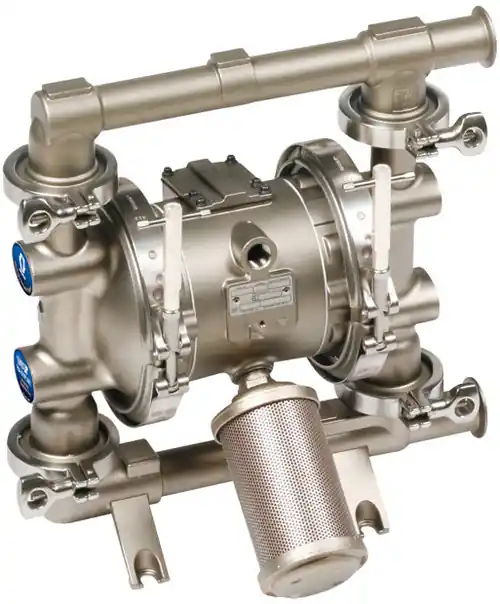

Graco 1040 FDA-Compliant 1 in. Double Diaphragm Sanitary Pumps w/ SST/PTFE O-Rings, PTFE Diaphragm & Balls

Description

Graco 1040 FDA-Compliant 1 in. Double Diaphragm Sanitary Pump with flow rates up to 41 gpm – ideal for food-related applications. Pump has 1 in. Tri Clamp fittings on both the inlet and outlet for ease of installation and cleaning. Looking for replacement parts? Click here! ApplicationsEvacuation of food process mixing kettlesTransferring from original container to mixing tanksHigh volume evacuation of liquid concentrates from shipping tankers to holding vesselsRepackaging of fluids from original container to smaller receptaclesPumping lotions for the pharmaceutical industryFeatures1 in (25.4 mm) Tri-clamp connection on inlet & outletAll fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)Air pressure operating range of 20-120 psi (1.4-8 bar, 0.14-0.8 MPa)Maximum free-flow delivery of 40 gpm (151 lpm)All Graco diaphragm pumps offer flow rates up to 25% greater than many competitive pumps with PTFE diaphragmsWide range of food-grade elastomers available including Santoprene, Nitrile Rubber, Viton and PTFEO-Ring Material: PTFESpecificationsAir Exhaust Port Size: 3/4 in (19.05 mm)Air Exhaust Port Thread Gender: FemaleAir Exhaust Port Thread Type: NPTAir Inlet Size: 1/2 in (12.70 mm)Air Inlet Thread Gender: FemaleAir Inlet Thread Type: NPTApplication: SanitaryBall Material: PTFECenter Section Material: Stainless SteelCompatible Material: Edible Oil, Food and Personal CareCompressor Required: YesConfiguration Code: 1040FG-PS01AS13SSPTPTPT21Connection Type: Tri-ClampDiaphragm Material: PTFE/Santoprene 2-PieceFluid Passage Size: 1 in (25.4 mm)Fluid Section Material: 316 Stainless SteelFor Use With: Food and Personal CareHazardous Location Approval: ATEX, IECExManifold Configuration: End PortManifold O-Ring Material: PTFEMaterial: Stainless SteelMaterial Certification: EN 1024:2004 Type 2.1 (Standard)Maximum Air Consumption: 50 SCFM (1416 L/min)Maximum Air Pressure: 120 psi (0.83 MPa / 828 kPa)Maximum Cycle Rate: 256 CPM (4.27 Hz)Maximum Flow Rate: 41 GPM (155 L/min)Maximum Fluid Operating Temperature: 180 °F (82 °C)Maximum Fluid Pressure: 120 psi (0.83 MPa / 828 kPa)Maximum Solid Size: 0.125 in (3.18 mm)Minimum Fluid Operating Temperature: -40 °F (-40 °C)Model: SaniForceOverall Height: 16.1 in (409 mm)Power Source: PneumaticPump Ratio: 1:1Pump Type: FDA GradeSeat Material: 316 Stainless SteelSeries: 1040 FGStandards Met: FDA Compliant Materials, EC 1935/2004Surface Finish: 125 Ra (3.18 µm)Tri-Clamp Connection Size: 1.5 in (38.10 mm)Type: Pneumatic Diaphragm PumpWeight: 55 lb (24.95 kg)DownloadsProduct Manual (PDF Download)
