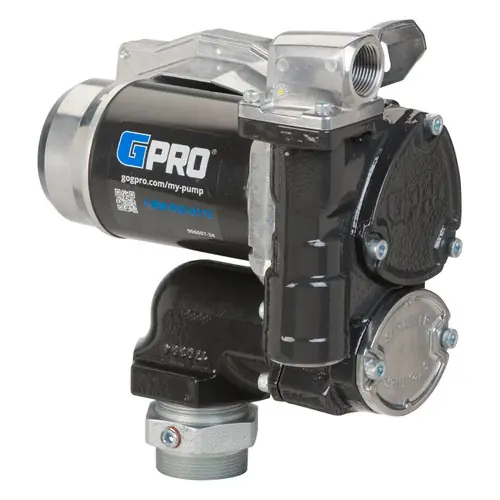

GPI V25-024PX 24V DC Transfer Pump – Pump Only – 25 GPM

Description

GPI V25 24V DC Vane Pumps have a flow rate of 25 GPM and are constructed with materials that prevent rust and survive all weather conditions. The V25 features a Quick-Fit modular design that eliminates dangerous leaks and allows for the easy attachment of a filter, meter, or both. Made in the USA. Fluid Compatibility: Gasoline up to E15, Diesel up to B20, Kerosene. Pump only version also supports the use of Aviation Gasoline (AVGAS100LL), and Kerosene Grade (JET A). Features Quick-Fit modular design eliminate dangerous leaks – Four bolts and an o-ring quickly attach a filter, meter, or both High Pressure Performance ideal with hose reel Equipped with Safe Stop Power Down – 30 minute auto power down with easy reset, Pump 750 gallons uninterrupted, prevents misuse Lockable Nozzle Holder to deter fuel theft – New drip catch feature helps keep tanks and trucks clean Multidirectional 90 degree outlet to adapt easily for your application Internal Check Valve with Perfect Prime to keep pump head primped and ready to work, reduces wear avoiding dry prime conditions Easy Access to fuel strainer – simply remove two bolts and strainer cover Tank Adapter Included for easy installation, ready for anti-siphon vent kit Specifications Model: V25-024PX Type: Carbon Vane Housing Material: Cast Iron Inlet: 1 in. NPT Outlet: 1 in. NPT Tank Adapter: 2 in. NPT Pump Rate: 25 GPM (94 LPM) Input: 24V DC Current Draw: 18 Amps Motor: 1620 RPM, .41 hp Motor Approval: cULus Listed, Class I Div 1, IECEx/ATEX Zone 1 Motor Protection: 20 Amp Circuit Breaker Duty Cycle: Intermittent, 30 minute ON, 30 minute OFF Suction Lift: Up to 15 ft. (4.5 m) Operating Temperature: -20 °F to 125 °F (-29 °C to 52 °C) Maximum Surface Temperature: 320 °F (160 °C) Operating Pressure: 20 PSI (1.37 bar) Cord: NA Fuse: 20 Amp Warranty: 4 Year Package Contents V25-24PX 24V DC 25 GPM Fuel Transfer Pump Modular fitting with hardware Tank adapter Fuse assembly Owner’s manual Downloads V25 Owners manual (PDF Download)
