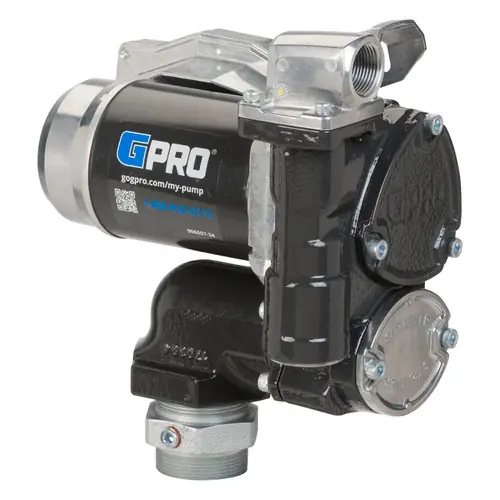

GPI V25-012PX 12V DC Transfer Pump – Pump Only – 25 GPM

Description

GPI V25-012PX 12V DC Transfer Pump
The GPI V25 12V DC Vane Pump delivers a fast 25 GPM flow rate and is built to handle tough environments. Its durable construction resists rust and stands up to all weather conditions, making it a great option for mobile fueling or remote applications.
The Quick-Fit modular design (including a multi-directional 90° outlet) and quick fuel strainer access makes it easy to upgrade your setup: attach a filter, meter, or both in seconds, with no mess and no leaks. The lockable nozzle holder deters fuel theft and it includes a tank adapter preped for an anti-siphon vent kit.
Proudly Made in the USA, the V25 is engineered for professionals who demand reliability and efficiency.
Fluid Compatibility: Gasoline up to E15, Diesel up to B20, Kerosene. Pump only version also supports the use of Aviation Gasoline (AVGAS100LL), and Kerosene Grade (JET A).

Features

Quick-Fit modular design eliminate dangerous leaks – Four bolts and an o-ring quickly attach a filter, meter, or both
High Pressure Performance ideal with hose reel
Equipped with Safe Stop Power Down – 30 minute auto power down with easy reset, Pump 750 gallons uninterrupted, prevents misuse
Lockable Nozzle Holder to deter fuel theft – New drip catch feature helps keep tanks and trucks clean
Multidirectional 90 degree outlet to adapt easily for your application
Internal Check Valve with Perfect Prime to keep pump head primped and ready to work, reduces wear avoiding dry prime conditions
Easy Access to fuel strainer – simply remove two bolts and strainer cover
Tank Adapter Included for easy installation, ready for anti-siphon vent kit

Specifications

Model: V25-012PX
Type: Carbon Vane
Housing Material: Cast Iron
Inlet: 1 in. NPT
Outlet: 1 in. NPT
Tank Adapter: 2 in. NPT
Pump Rate: 25 GPM (94 LPM)
Input: 12V DC
Current Draw: 35 Amps
Motor: 1620 RPM, .41 hp
Motor Approval: cULus Listed, Class I Div 1, IECEx/ATEX Zone 1
Motor Protection: 40 Amp Circuit Breaker
Duty Cycle: Intermittent, 30 minute ON, 30 minute OFF
Suction Lift: Up to 15 ft. (4.5 m)
Operating Temperature: -20 °F to 125 °F (-29 °C to 52 °C)
Maximum Surface Temperature: 320 °F (160 °C)
Operating Pressure: 20 PSI (1.37 bar)
Cord: NA
Fuse: 40 Amp
Warranty: 4 Year

Package Contents

V25-12PX 12V DC 25 GPM Fuel Transfer Pump
Modular fitting with hardware
Tank adapter
Fuse assembly
Owner’s manual

Downloads
V25 Owners manual (PDF Download)
