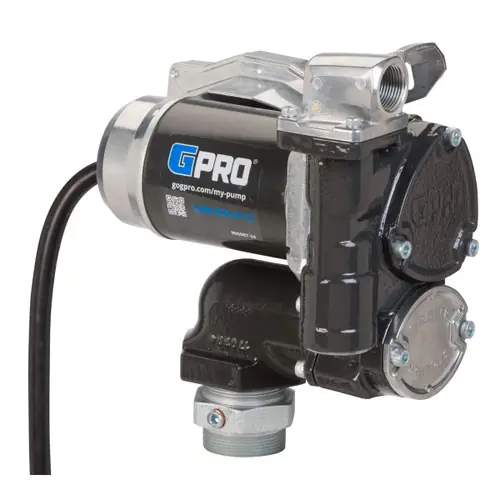

GPI V25-012PC-N08 1 in. FNPT GPRO 25GPM 12V DC Fuel Transfer Pump – Pump Only w/ Cord – 25 GPM

Description

GPI V25-012PC-N08 1 in. FNPT GPRO 25GPM 12V DC Fuel Transfer Pump – Pump Only w/ Cord – 25 GPM The GPRO V25 Series is a next-generation modular vane pump engineered for consistent high-pressure performance. Its 12V DC motor delivers up to 25 GPM (94 L/min), making fueling quick and efficient. Recommended for use with gasoline up to E15, diesel fuel up to B20, kerosene, Avgas (100LL), and Jet A. This pump’s rugged construction, modular design, and user-friendly features make it an ideal solution for agriculture, construction, and fleet management applications. Note: Includes factory installed 18 ft. power cord Features Safe Stop: Built-in timer automatically turns the pump off to prevent unattended operation and exceeding a 30-minute duty cycle Over Voltage Sensor: Protects the 12V(dc) motor from damage if connected to a 24V(dc) power supply Quick-Fit Modular Design: Four bolts and an O-ring allow fast, leak-free attachment of a filter, meter, or both Field-Replaceable Switch And Circuit Breaker: Diecast solid aluminum switch actuator prevents breakage; easy to replace if needed Lockable Nozzle Holder: Deters fuel theft and includes a new drip catch feature to keep equipment clean Multidirectional 90° Outlet: Offers flexible installation options for various fuel transfer applications Internal Check Valve With Perfect Prime: Keeps the pump head primed and reduces wear by avoiding dry priming Easy Access Fuel Strainer: Simply remove two bolts and the cover to clean or replace the strainer Specifications Max. Flow Rate: 25 GPM (94 L/min) Technology: Sliding Vane Amps Rated: 35 amps Duty Cycle: 30 min on/30 min off Power Cord: 18 ft. (5.5m), 10/2 AWG, Factory Installed Max. Discharge Pressure: 20 PSI ( 1.38 bar) Operating Temperature: -20° F to 125° F (-29° C to 52° C) Suction Lift: Up to 15 ft. (4.5 m) at Sea Level 70° F (21.1° C) Discharge Lift: Up to 18 ft. (5.5 m) at Sea Level 70° F (21.1° C) Pump Housing Material: Cast Iron Wetted Materials: Acetal, Aluminum, Carbon, Cast Iron, FKM, NBR, PBT/Polyester, Steel Mounting Type/Thread: Direct Mount, 2in. MNPT Suction Pipe: Not included Inlet: 1 in. FNPT Outlet: Modular, 1 in. FNPT Dispensing Hose: Not included Nozzle: Not included Nozzle Holder Type: Lockable with Drip Catch Warranty: 5-year pump warranty Approvals: cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada Contents V25-012PC Fuel transfer pump Factory-installed power cord Modular fitting w/hardware Tank adapter, Fuse assembly Owners manual Downloads Product Manual (PDF Download)
