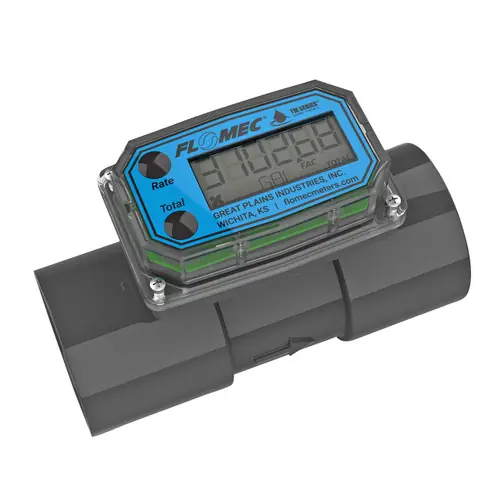

GPI TM Series 2 in. Spigot Electronic Water Flow Meter w/ LCD Display, Reads Gallons or Liters

Description

This economy water flow meter is an ideal alternative to traditional water meters. The TM Series water meters offer flow rate and flow total indication that help monitor water flow in waste water applications, water treatment, and sub-metering applications.
Please note: Comes configured to read gallons. Please see instructions for changing to liters.

Features

Easy to install
Indicates Batch, Cumulative Totals and Rate of Flow
Lithium battery life: 5 years
Meets Schedule 80 PVC
Non-volatile totals means amounts are retained when batteries are replaced or power is lost

Specifications

Size: 2 in.
Fitting: Spigot
Flow Rate: 20 to 200 GPM
K-Factor: 100 PPG (26 Pulses/L)
Design Type: Turbine
Accuracy: ±3.0 % of reading
Operating Temperature: +32 to +140 ºF (0 to +60 ºC)
Powered By: 5 Year Lithium battery
Electronic Choice: Q9 Computer
Pressure Rating: 225 PSIG (15.3 BAR) at 73º F / 23º C
Pulse Output: Open Collector (NPN)
Wetted Materials:

PVC Housing
Ceramic Bearings
Tungsten Carbide Shaft
PVDF Rotor
316 Stainless Steel Rings

Applications

OEM Water Treatment Equipment / Skids
Small Waste Water Treatment Equipment
Sub-Metering of Facility Water Usage
Water Based Cooling Systems

Downloads
TM Series Owner’s Manual (PDF Download)
4-20mA Module Owner’s Manual (PDF Download)
Pulse Access, External Power & Scaled Pulse Module Owner’s Manual (PDF Download)
Q9 Computer Owner’s Manual (PDF Download)
