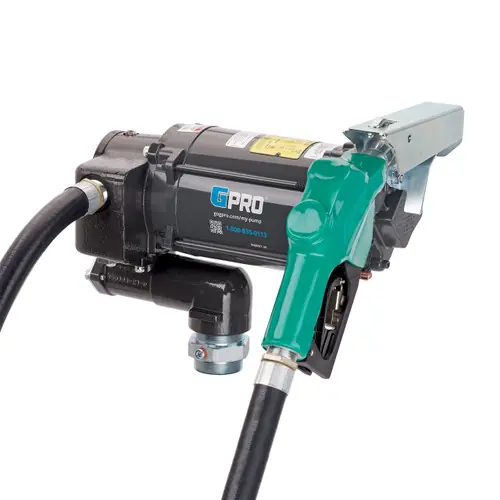

GPI GPRO PRO35-115 SERIES 115V AC 35 GPM Transfer Pump w/ Automatic Diesel Nozzle

Description

GPI GPRO professional grade fuel transfer pumps have an impressive 35 GPM flowrate for stationary tank applications. Ideal for fleet, agriculture or industrial applications.
Engineered for high performance and longevity, the PRO35 gets the job done fast and efficiently.

Extended Duty Cycle exceeds the industry standard
Weight centering inlet base includes pressure relief and easy strainer access
Field replaceable switch and vanes
Tank Adapter included
Thermally protected motor
Vacuum Breaker Ready
Extreme Temperature Series (XTS) models available

Recommended Use: Gasoline (up to 15% alcohol blends such as E-15), diesel fuel (up to 20% biodiesel blends such as B20), and kerosene

Specifications

Pump Flowrate: Up to 35 GPM (132 LPM)
Voltage: 115V AC
Dispensing Hose: 1 in. 18 ft.
Suction Lift/Dry Prime: 15 ft. (4.6 m) Maximum
Discharge Lift: 10 ft. (3 m) Maximum
Operating Temp: -20° to +125° F (-29° to +52° C)
Bypass Pressure: 20 psi
Bung: 2 in. NPT
Inlet / Outlet: 1 1/4 in. NPT / 1 in. NPT
Suction Pipe Material: N/A
Flowrate – At Head: 35.8 GPM
Flowrate – Auto Nozzle: 28.8 GPM (With 18 ft. Hose)
Strainer Mesh Size: 315 Micron
Warranty: 4-Year (See Owner’s Manual for Details)
Common Applications: Commercial use with Stationary Storage Tanks, Construction Sites, Large Farm Equipment, Logging, Mining Operations, Oil Exploration, Fleet & Service Vehicles, Delivery Trucks, & Fuel Management Systems & More

Manual
Product Manual (PDF Download)
