GPI GPRO 20 GPM 115V Aviation Fuel Transfer Pump Package

Description

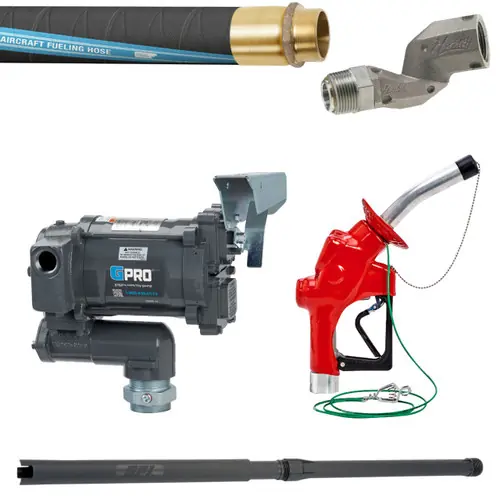

GPI GPRO 20 GPM 115V Aviation Fuel Transfer Pump Package This 115V AC 20 GPM aviation fueling package is for use with personal or light duty aircraft. Use with gasoline, gasoline/ethanol blends at levels designated as “gasohol” (E10 maximum), diesel, kerosene and aviation gasoline (AVGAS 100LL) and kerosene grade (JET A). This package contains the 115V AC 20 GPM pump, pipe fitting, aviation hose, swivel and nozzle. Nozzle comes with red full grip guard to identify use only with AvGas or black full grip guard for jet fuel application if desired. User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. Pump motor is U.L. Listed to U.S. and Canadian standards.FeaturesGPI 115V AC 20 GPM Aviation Fuel PumpHusky Hewitt Osprey Over Wing Aviation Fuel NozzleContinental ContiTech Jet Ranger™ 1 in. 20 ft. 300 PSI Aviation Fueling HoseGPI 1 in. 15-40 in. Plastic Telescoping Suction PipeHusky 1 in. Hose SwivelSpecificationsPump SpecificationsPump Flowrate: Up to 20 GPM (76 LPM)Voltage: 115V ACSuction Lift/Dry Prime: 15 ft. (4.6 m) MaximumDischarge Lift: 10 ft. (3 m) MaximumOperating Temp: -20° to +125° F (-29° to +52° C)Bypass Pressure: 22 psiBung: 2 in. NPTInlet / Outlet: 1 in. NPT / 1 in. NPTStrainer Mesh Size: 315 MicronWarranty: 4-Year (See Owner’s Manual for Details)Common Applications: Commercial use with Stationary Storage Tanks, Construction Sites, Large Farm Equipment, Logging, Mining Operations, Oil Exploration, Fleet & Service Vehicles, Delivery Trucks, & Fuel Management Systems & MoreHose SpecificationsSeries: Jet Ranger™ID: 1 in. (25.4 mm.)OD: 1.493 in. (37.9 mm.)Length: 2 – 125 ft. – Other sizes available – Please call 1-800-333-3331 for more informationEnds: Brass Male NPTFerrules: BrassConstruction Tube: Black Nitrile Synthetic RubberCover: Black Wingprene® (ORS) Static Dissipating/Static Conductive Synthetic Rubber (Wrapped Finish)Reinforcement: Four Spiral-plied Synthetic Fabric and One Nylon BreakerWorking Pressure: 300 PSI (2.07 MPa)Hose Design Ratio (Burst Pressure): 4:1Temperature Range: -35°F to 200°F (-37°C to 93°C)Weight: 0.54 lbs./ft. (0.805 kg./m.)Nozzle SpecificationsBody AluminumSeals FluorocarbonPacking Double o-ring seal protected by fiber reinforced Teflon®Lever One piece contoured steelInlet 1 in. / 25.4 mm NPTKit ContentsGPI50300001 115v 20gpm FUEL TRANSFER PUMPSMC33HB1014010C 1 1/2 in. x.1 in. 150
# BLK HEX BUSHINGSMC83NI4010014C 1xCLOSE (1 1/2 in.) BLK NIP SCH40HI1149812BLK OVER-WING FUELING NZL BLKHU000087 VI 1 in. Mx1 in. F MULTIPLANE SWIVELGY100JETRNGRBLK 1 in. JET RANGER AVIATION HOSEDXH5212A 1 in. MALE 520H API SERIES BODYDXR1AS A* 1 in. 1-30/64-1-32/64 FERRULEMOCTCNPT1000 1 in. NPT RED HOSE CAPGPI11024101 15-40 in. ADJ COMP SUCTION PIPEAGYJETRANGER100X20MXM 20 ft. 300 PSI AVIATION HOSE
