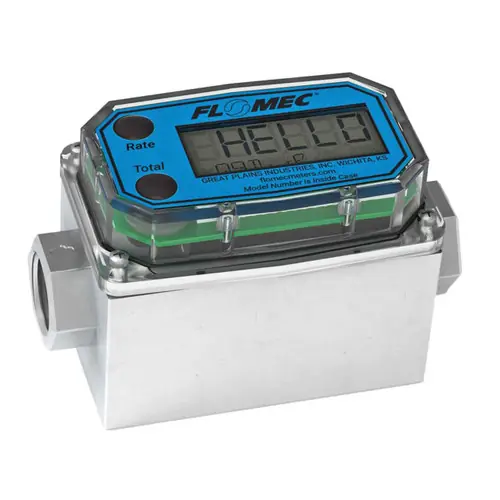

GPI Flomec® G2A-05-N-Q 1/2 in. NPT Industrial Aluminum Turbine Flow Meter w/ Battery Powered Display

Description

GPI G2A-05-N-Q 1/2 in. NPT Industrial Aluminum Turbine Flow Meter w/ Battery Powered Display for Solvents and Fuel
The FLOMEC® G2 Series Aluminum Turbine Flow Meter provides an economical and reliable solution for measuring solvents, fuels, and other low-viscosity fluids. Designed with a corrosion-resistant aluminum body and factory 5-point calibration, this meter ensures accurate readings and extended durability. Its Q9 battery-powered LCD display offers high visibility, while the modular design allows seamless integration of output modules, sensors, and remote display kits. Perfect for both industrial processes and fuel management, the G2 Series delivers performance you can trust.
Applications: Solvents and Fuel

Features

High-Visibility LCD Display Battery-powered Q9 display with 2-year battery life
Add optional 4-20mA module and sensors for enhanced system integration
11 pre-programmed engineering units plus 1 custom option for flexible measurement
High Accuracy & Durability: Factory 5-point calibration and rugged, corrosion-resistant materials
Easy maintenance,simple internal part replacement and non-volatile totals for continuous reliability
Modular design allows for use with output modules, sensors and remote display kits; plug and play

Specifications

Connection Size: 1/2 in. Female NPT
Flow Range:1 – 10 GPM (3.8 – 38 L/min)
Accuracy: 1.5%
Technology: Turbine
Pressure Rating: 300 PSI (20.7 bar)
Operating Temperature: 0° F to 129° F (-18° C to 54° C)
Housing Material: Aluminum
Wetted Materials: 316 Stainless Steel, Aluminum, Ceramic, PVDF, Tungsten Carbide
Warranty: 2 Years
Approvals: ATEX EX, CE, FCC PART 15, FM Approved, cFM Approved, IECEX, IP65, NEMA 4, RoHS, UKCA, UKEx

Downloads
Product Manual (Turbine Housing) (PDF Download)
Product Manual (Q9) (PDF Download)
