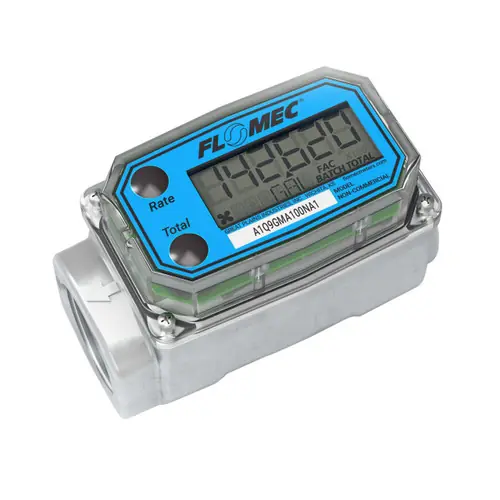

GPI Flomec® A1 Series 1 in. NPT Commercial Grade Aluminum Meters – Gallons

Description

If you are looking for a great flow meter for measuring fuel, diesel, and other petroleum based liquids a A1 aluminum flow meter is the meter you’re looking for. FLOMEC® A1 Series Turbine Meter with Q9 Display is designed as a self-contained, battery-powered unit. Select the A1 Aluminum meter when you need an accurate meter for thin petroleum-based fluid applications. Intrinsically safe for use in hazardous areas. The lithium battery powered electronic display A1 flow meters are calibrated to read in gallons and liters per minute with two totals in which case one is re-settable and gives you a cumulative flow total.
Note: If the meter includes any module (4-20mA or Pulse out) that introduces external power, then all intrinsic safety approvals are voided.

Features

Unique package combines Turbine and LCD into a self-contained, compact, economical meter
Local Display Computer features: 2 non-volatile totals (Batch total= Resettable, Total = non-resettable Cumulative); Rate of Flow
Output capabilities available to communicate with process control equipment
Reads in gallons
Lightweight, compact design allows for easy installation
Factory calibrated
AAA Alkaline battery life: 2 years

Specifications

Connection Size: 1 in. FNPT
Material: Aluminum
Flow Rate: 3 to 50 GPM (11- 190 L/min)
Design Type: Turbine
Accuracy: ±1.5%
Repeatability: ± 0.2%
Pressure Rating: 300 PSI (21 bar)
Operating Temperature Range: -40°F to 250° F (-40° C to 121° C)
Typical K Factor: 730 PPG (193 Pulses/L)
Frequency Range: 36.5-608.3 Hz @ 3-50 GPM (11-190 L/min)
2 year Meter warranty
Recommended Strainer Size: 28 mesh
Wetted Materials:

Aluminum Housing
Ceramic Bearings
Tungsten Carbide Shaft
Nylon Rotor
316 Stainless Steel Rings

Approvals:

ATEX II 1 G Eia IIC T6 Ta = -40°C to 60°C; IP65
CE
EEnL IIC T4 U
Factory Mutual Approved
IP65
NEMA 4
Underwriters Laboratories – cUL

Applications

Fuel Transfer
Ag Chemicals
Plant Process Water
Solvents / Glycol
Batching / Blending
Chemical Feed Lines
Fuel products (Aluminum model)
