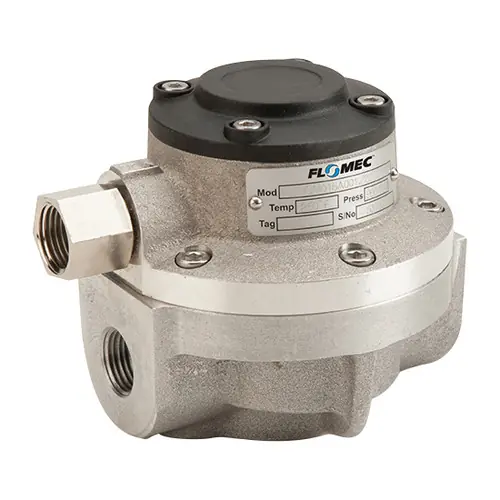

GPI Flomec OM Series 015 1/2 in. Aluminum Oval Gear Pulse Meter w/ FKM Seals

Description

Flomec medium capacity flowmeters provide precise volumetric flow measurement of clean liquids found in a broad range of industries including automotive, aviation, mining, power, chemical, pharmaceutical, food, paint & petroleum. Applications include the distribution of fuels, fuel oils, lubricants, alcohols, solvents, blending of bio & ethanol fuels, metering of chemicals, grease, adhesives, ink, insecticides & non-conductive liquids either pumped or gravity fed.Blind pulse meters are available with reed switch & Hall Effect outputs. Quadrature pulse & Integral 4-20mA outputs are optional.

Features

High accuracy & repeatability, direct reading flowmeter
No requirement for flow conditioning (straight pipe runs)
Various rotor material options
Measures high & low viscosity liquids
Quadrature pulse output option & bi – directional flow
Integral 4 – 20mA output option
Optional Exd I/IIB approval (ATEX, IECEx)

Specifications

Size: 1/2 in. FNPT
Flow Range: 0.26 – 10.6 GPM (1 – 40 LPM)
Accuracy: +/- 0.5%
Repeatability: Typically +/- 0.03 of reading
MaPressure: 990 PSI
Body Material: Aluminum
Rotor Material: PPS – PTFE filled (Polyphenylene Sulfide)
Bearing Type: No Bearing
O-Ring Material: FKM (Viton)
MaTemperature Rating -4° to 250°F
Cable Entries: 1/2 in. NPT
