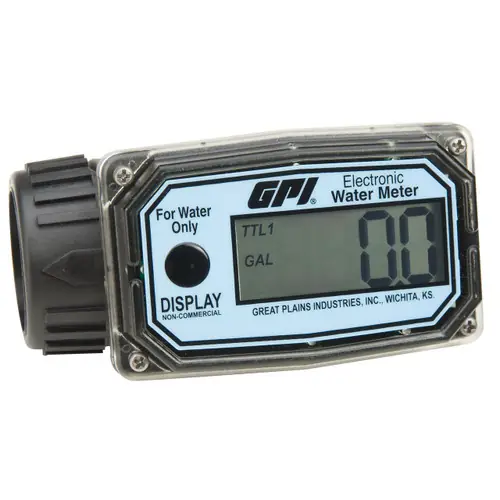

GPI 01N31GM 1 in. NPT Nylon Electronic Water Meter- Gallons

Description

GPI 01N series water meter is a sturdy electronic digital meter with rugged nylon housing. Mount on the end of a hose or a pipe, in-line. Complete meter, including turbine assembly, microprocessor and LCD readout. Works well on any pump or gravity feed system with at least 3-30 GPM flow range. 1 year warranty through GPI. Features Sturdy electronic digital meter Convenient spin collar for easy installation on the end of a hose or a pipi, in-line Complete meter, including turbine assembly, microprocessor and LCD readout. Reads Gallons  Works on any pump or gravity feed system with at least 3-30 GPM (10-100 LPM) flow range Specifications Design: Turbine Flow range: 3-30 GPM  Fitting size: 1 in. NPT Accuracy: ±5.0% of reading Reliability: ± 5.0% Pressure rating: 150PSI (10.2 BAR) Operating Temperatures: 20° F to 130° F (-10° C to 54° C) Housing: Nylon Rotor: Nylon Bearing: Ceramic Shaft: Tungsten Carbide Signal Generator: Ferrite Rings: 316 Stainless steel Display: (2) totals( cumulative & batch) Permanent factory calibration for water 4 in. L 2 in. W 2.5in. H Weighs: 1.1 lbs. CE approved Warranty: 1 Year Downloads Spec Sheet (PDF Download)
