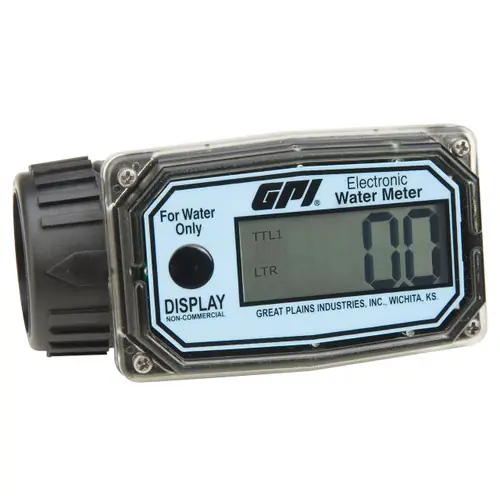

GPI 01N Series 1 in. BSP Electronic Water Meter – Liters

Description

Simple, small and sturdy Electronic Digital Water Meter with rugged nylon housing. Mount on the end of a hose or a pipe, in-line. Complete meter, including turbine assembly, microprocessor and LCD readout. Factory calibration in liter measurement. Works well on any pump or gravity feed system with at least 10-100 LPM flow range. Note: Do not use with flammable liquids. Features Displays in Liters Compact and lightweight at just 12 oz. Lightweight nylon turbine meter Easy to read display up to 4 digit LCD Powered by two alkaline AAA batteries Specifications Design Type: Turbine Fitting Type: BSP Flow Range: 10 – 100 LPM Accuracy: ± 2.5% of reading Repeatability: ± .5% Pressure Rating: 150 PSIG (10.2 BAR) Operating Temperature: +14°F to +131°F (-10°C to +55°C) Local Display: Includes: 2 Totals (1 Cumulative, 1 Batch) Permanent factory calibration for water Materials: Housing: Nylon Bearings: Ceramic Shaft: Tungsten Carbide Rotor: Nylon Signal Generators: Ferrite Rings: 316 Stainless Steel Downloads GPI 01N Series Electronic Water Meter Owners Manual (PDF Download)
