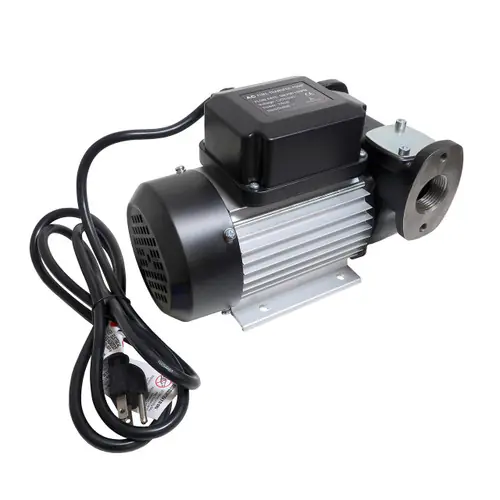

Fuelworks 120V AC Diesel Pump – 15 GPM

Description

Fuelworks self priming cast-iron diesel transfer pump with 120V AC motor has a flow rate of 15 GPM (57 LPM) and is equipped with a bypass valve to prevent motor overload. Easy to install and maintain.
Note: For diesel fuel only.

Features

Self priming
120V AC motor
Equipped with by-pass valve to prevent motor overload
Cast iron pump body with anti-corrosion treatment and paint
Ease of installation makes maintenance much more convenient

Specifications

Inlet: 1 in.
Outlet: 1 in.
Flow Rate: 15 GPM
Motor: Asynchronous motor, single-phase, closed type (protection class IP55), self-ventilated
Voltage: 120V AC
Power: 200W
Max. Pressure: 29 PSI (2 bar)
RPM: 2800
Operating Temperature: -4°F – +140°F (-20°C – +60°C)
Max. Relative Humidity: 90%
Suction Height: 8 ft. (2.5 m.)
Fluid Compatibility: Diesel
Package Dimensions: 11.8 in. 9.4 in. 9.8 in.
Weight: 18.9 lbs.
Common Applications: Commercial use with Stationary Storage Tanks, Construction Sites, Large Farm Equipment, Logging, Mining Operations, Oil Exploration, Fleet & Service Vehicles, Delivery Trucks, & Fuel Management Systems & More

Downloads
Fuelworks AC Fuel Transfer Pump Manual (PDF Download)
