Fill-Rite Replacement Armature Kits for FR600 Series Pumps – AC and DC “G” Series

Description

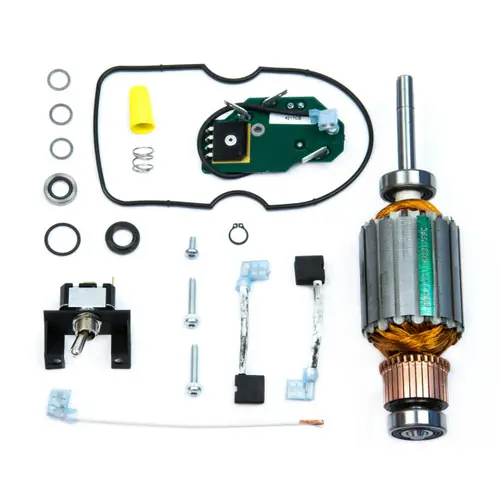

These Replacement Armature Kits permit an overhaul of the best-selling line of AC and DC “G” Series Fill-Rite pumps. These rebuild kits replace the “MPAM” rebuild kits. It should be noted that the new “ARM” series kits do not include the motor sleeve or motor magnets. If the motor magnets in the sleeve are damaged or loose, or if the motor sleeve is damaged, the pump must be replaced. Note: Though this kit is designed to extend the life and maintain the integrity of the pump assembly as a whole, opening the motor assembly voids the UL listing and Explosion Proof ratings. This is due to possible alterations to the “flame paths” required for the UL listing. TUFRKIT124ARM Components Item 1 – Armature, 24V w/Bearings – 1 qty Item 2 – Screw & Washer Assembly – 2 qty Item 3 – Holder, Brush Assembly – 1 qty Item 4 – Line Switch Assembly – 1 qty Item 5 – Thermal Protector 24V – 1 qty Item 6 – Seal, Motor Housing – 1 qty Item 7 – Yellow Brush Wire w/Over Molded Term – 1 qty Item 8 – Brush Assembly, White – 1 qty Item 9 – Kit, Shaft Seal Small Pumps – 1 qty
