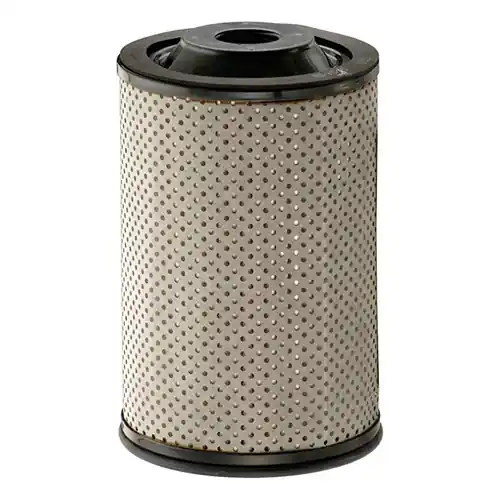

Facet Fuel-Gard VF-22SB Filter Cartridge – 25 Micron

Description

The Facet VF-22SB Series filter cartridges provide long service life and high solids holding capacity with no unloading characteristics. Carbon steel structural components are coated to protect against corrosion. Removes water and particulates from fuel. Specifications Micron Size: 25 MaOperating Temperature: 240°F (115°C) MaDifferential Pressure: 75 PSI PH Range: 5 to 9 Flow Direction: Outside to In Gasket: Nitrile Rubber Outside Diameter: 6 in. (152 mm) Nominal Length: 9 in. (230 mm) VF-22SB Charts VF-22SB Filter Part
#   Micron   Size Flow Rate for  Gasoline, Jet Fuel, Diesel   PFCF6122PLO 2 60 GPM PFCF6125PLO 5 60 GPM PFCF61210PLO 10 60 GPM   PFCF61225PLO   25 60 GPM VF-22SB Coalescer (Air/Gas) Separator    Part
#      Micron  Size   Flow Rate  Gasoline   Flow Rate   Jet Fuel   Flow Rate  Diesel   Flow Rate   @ 25 PSI   Flow Rate   @ 50 PSI   Flow Rate   @ 75 PSI   Flow Rate   @ 100 PSI   Flow Rate   @ 150 PSI PFCC227 1 60 GPM 50 GPM 30 GPM 143scfm 180 scfm 203 scfm 233 scfm 270 scfm PFCC22B 5 60 GPM 50 GPM 30 GPM 143scfm 180 scfm 203 scfm 233 scfm 270 scfm PFCC22C 25 60 GPM 50 GPM 30 GPM 143scfm 180 scfm 203 scfm 233 scfm 270 scfm
