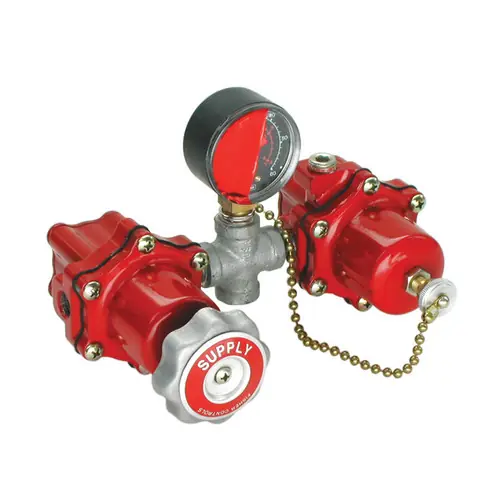

Emerson Fisher Type R130-21 1/4 in. FNPT Aluminum Changeover Manifold Assembly w/ 45 PSIG, 1.475M BTU/HR

Description

Composed of two Type 67C regulators and a special 0 to 60psig/ 0 to 4.1 bar pressure gauge, the Type R130 delivers a 45 psig / 3.1 bar outlet pressure on supply and 30 psig / 2.1 bar on reserve. The gauge, which serves as the changeover indicator, is painted red from 0 to 35 psig / 0 to 2.4 bar range, it indicates that the manifold has switched from the supply to the reserve cylinder. The Type R130-21 has a temperature rating of -20 to 160°F / -29 to 71°C.This product is backed by a 10 year warranty. Note: These units are intended for use with Second Stage regulators and/or separate relief devices which provide overpressure protection required by NFPA 58. Capacity of all these changeover manifolds is dependent on the size of the Second-Stage regulator with which they are used. If the manifolds are used as a Final-Stage (pounds-to-pounds), a relief valve is required in the downstream system. Specifications Body Size: 1/4 in. NPT Material: Aluminum Maximum Inlet Pressures: 250 psig/ 17,2 bar Maximum Emergency Outlet Pressure: 50 psig / 3.4 bar over the outlet pressure setting or 100 psig / 6.9 bar, whichever is greater Standard Outlet Setting: Supply: 45 psig / 3,1 bar Reserve: 30 psig / 2,1 bar Capacity: 1,475,000 BTU Temperature Capabilities:-20° to 160°F / -29° to 71°CWarranty: 10 Years Downloads R130 Instruction Manual (PDF Download) R130 Schematic (PDF Download)
