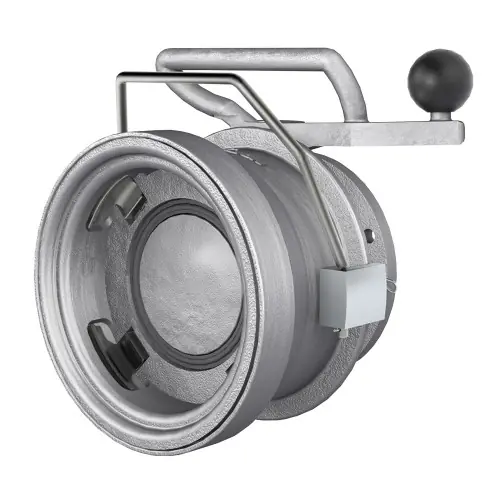

Emco Wheaton 4 in. J0453 API Coupler

Description

Emco Wheaton’s J453 API Coupler is designed to incorporate maximum safety, efficiency, and ease of use in the most demanding terminal environments. Easy to assemble and maintain, the lightweight J453 coupler meets the recognized international standards and industry codes of practice. Note: Suitable for use in a Zone 1 rated for hazardous area. ATEX Certified Group II Category 2 G, Safe by Design, Gas Group IIA, Temperature Rating T4 (T4 – 20 <= Ta <= +90C). Features Ultralight body Ergonomic handle Up to 50% less maintenance downtime Improved environmental and operator safety with an optional integrated pump to further reduce disconnect leaks Easier sealing maximizes safety of compleloading applications Specifications Model: J453 Mounting: 4 in. (100 mm.) TTMA Flange Seal: Viton GFLT Max. Working Pressure: 230 PSI (16 Bar) Test Pressure: 360 PSI (25 Bar) Operating Window: 6.15 in. (156 mm.) Handle Length: 7.13 in. (181 mm.) Product Dimensions: 8.94 in. 10.63 in. 7.01 in. (227 mm. 270 mm. 178 mm.) Weight: 15.65 lbs. (7.1 kg.) Standard: API RP 1004 Fuel Compatibility Viton GFLT Seals: Gasoline Diesel Jet fuel Avgas 100% ethanol 100% biodiesel Any blend of the above fluids Downloads J453 Parts Breakdown (PDF Download)
