Edson Portable Aluminum Manual Grout Pump – 18 GPM

Description

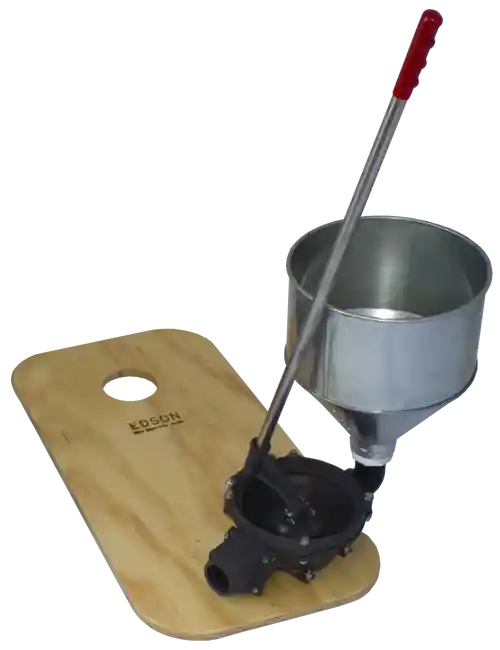

Edson’s 18 gallon per minute Manual Pump Kit is ideal for pumping grout or similar high viscosity slurries. The tapered body, heavy duty head ring, large valve openings and tough Nitrile diaphragms are well suited to this application. Mounting the Edson pump on a carrying board, with a 14 quart feed hopper, and the 32″ handle creates a very conveniently packaged “Grout Kit”. The kit is easily transported from site to site for those small jobs that make it costly to send in a bigger system. The kit is ideal for well head filling, window and door frame grouting and machine rigging. This grout pump can be used as a dewatering pump with a self prime suction life of 15′ – and a pumping capacity of 18 GPM. It can make short work of pumping out pits, sumps and collecting waste liquids.

Features

Portable
Pumps up to 50% Solids
Pump Pressure to 8 PSI
Non-clogging flow thru design
Easy to set up, use, clean & maintain
Built tough for years of service
Long life, reinforced pump diaphragms
Manual Lever Action with 32″ Plated Steel Handle

Specifications

MaVolume: 18 GPM/68.1 LPM
Dry Suction Lift: 15 ft./4.57 m
Static Suction Lift: 18 ft./5.48 m
Discharge Head: 18 ft. 5.48 m
Pumping Grout: Approx. 8 PSI discharge pressure
Pump Body: Anodized Aluminum
Nitrile Diaphragm & Valves
Stainless Steel Hardware
Side Inlet Pump Body
Funnel: 14 quart Galvanized
Carry Board: Marine Grade Plywood w/ Clear Polyurethane Finish 12″ 24″
Connections: Inlet 1.5″ Male NPT, Discharge 1.5″ Female NPT
