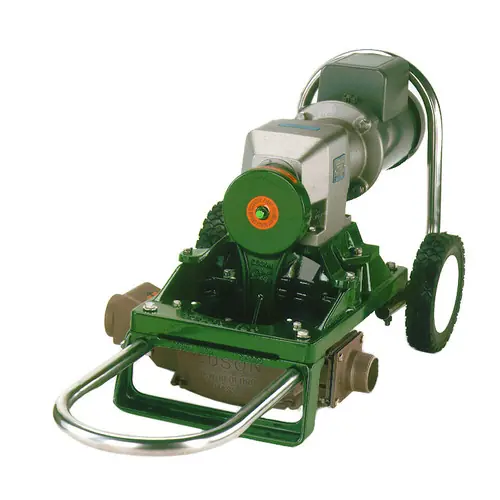

Edson Model 120E 40 GPM Electric Powered Diaphragm Pump – Cart Mount

Description

Edson’s Model 120E Electric Powered Diaphragm Pump is the work horse of the Edson pump line. The single action pump delivers reliability and simplicity. It has been used by the military, yacht builders, and marinas to move gray water and black water for decades. 12’ suction lift, 12’ discharge head, up to 40 GPM. Available in heavy duty bronze or lightweight aluminum. Edson Electric Powered Diaphragm Pumps are the most popular of all Edson Pumps due to their size, capacity, versatility, and the economy of electric drives. They are used for the collection and transfer of waste liquids and pumping liquids with suspended solids. They are capable of handling liquids with large suspended solids with clogging, to prime from dry starts, and to run dry. Edson’s Electric Powered Diaphragm Pumps also have the added feature of low emulsive, non-sheering pumping action. These basic performance features and Edson’s history of manufacturing quality products has made these pumps the choice for cleaning up our environment and controlling the disposal of liquid waste.

Features

Safe to run when dry
Volumes to 40 GPM
Powerful vacuum lifts
Dry start lift to 12′
Pump up to 50% solids
Low emulsive & sheer action
Non-clogging flow-thru design
Easy to set-up, use, clean, and maintain
Permanent and portable applications
Built tough for years for service
Long life, reinforced pump diaphragms
All materials specified for the marine environment
Drives: Electric Powered – 3/4hp, 115/230V AC, 1 phase, tefc Motorv

Downloads
Manual
