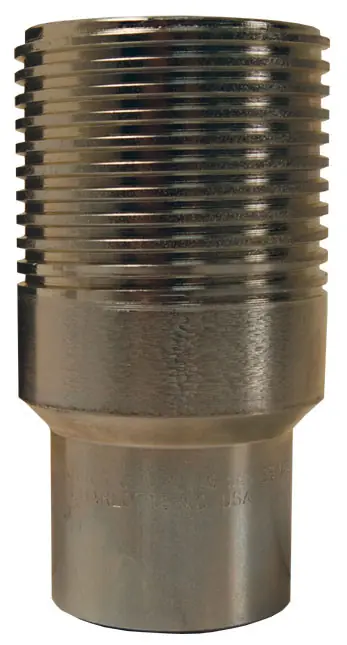

Dixon WS-Series High Pressure Wingstyle Interchange Nipple

Description

WS Series Wingstyle Female Plugs from Dixon are interchangeable with a variety of other brands including Parker and Hydraulics Inc. These couplers are used extensively in oilfield and offshore oil rig applications. FeaturesMachined components are manufactured using solid steel bar stockStainless steel retaining rings and springs maximize corrosion resistance and extend service lifeSteel componentry is plated using ROHS Compliant Zinc Nickel for superior corrosion resistanceRugged high-strength steel sand-cast wing nut for threaded connect and disconnect operationNitrile (Nitrile Rubber) seals are standard, providing a temperature range of -40°FF to +250°FFPTFE anti-extrusion ring protects main coupling O-Ring from dynamic impulse pressure damageMain valve seal is ‘housed’ to improve seal integrity during pressurized connection/disconnectionCompatible and interchangeable with Snap-Tite 75-Series, Hydraulics Inc. Series- 5TV, DNP VFF-HD, Stucchi VOF, Faster OGV, Eaton FD85, Holmbury LC SpecificationsMaterial: Steel5,000 psi at 70°FTemperature range: -40°F to +250°F (-40°C to +121°C)
