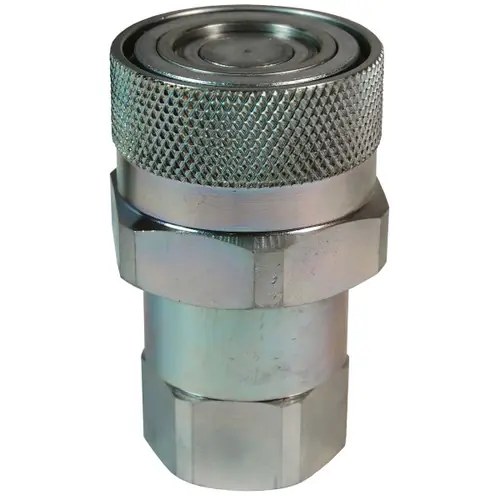

Dixon VEP Series 1/2 in. Hydraulic Couplers – 5500 PSI

Description

FeaturesMachined components are manufactured using solid steel bar stockStainless steel retaining rings and springs maximize corrosion resistance and extend service lifeSteel componentry is plated using ROHS Compliant Zinc Nickel for superior corrosion resistanceValve stems have molded Acetal seals, with a temperature range of -65°F to +212°F (-54°C to +100°C)Ancillary coupler seals are Nitrile (Nitrile Rubber), with a temperature range of -40°F to +250°F (-40°C to +121°C)TPC-ET Anti-Extrusion ring protects main coupling valve seal from dynamic impulse pressure damageTwo-stage valving to protect critical sealing components during pressurized connection & disconnectionPosi-Lock valve system secures valving during surge-flow conditions to prevent high-velocity damageNo-spill, flush face valve minimizes air inclusion during connection and spillage during disconnectionThreaded design eliminates premature wear or brinelling commonly found with locking ball designs when subjected to high impulse pressures Fully interchangeable with Stucchi VEP-P/VEP-HD Series, DNP PST4/FSI Series, Voswinkel FT Series, Parker FET-Series, and Holmbury HFT SeriesAvailable with NPTF, BSPP, ORB, and optional Code 62 Connections – Please call for details SpecificationsMaterial: SteelThreading: NPTFFlow: 3.5 GPM (13 L/min)Maximum Impulse Pressure*: 9000 PSI (62 MPa)Burst Pressure Connected: 18000 PSI (124 MPa) (165 MPa)Burst Pressure Coupler**: 22000 PSI (152 Mpa)Maximum Pressure Connect & Disconnect: 5500 PSI (38 MPa) Temperature range: -22°F to +212°F (-30°C to +100°C) *Couplings impulse tested in accordance with ISO7241-2 for 100,000 cycles connected and disconnected at Maximum Impulse pressure listed **System temperature for Maximum Connect/Disconnect Pressure must not exceed 150°F (65°C)Applications High Impulse Hydraulic ApplicationsOil Field EquipmentBOP SystemsConstruction EquipmentExcavatorsCrane SystemsAnywhere there’s a need for a tough, reliable hydraulic connection!
