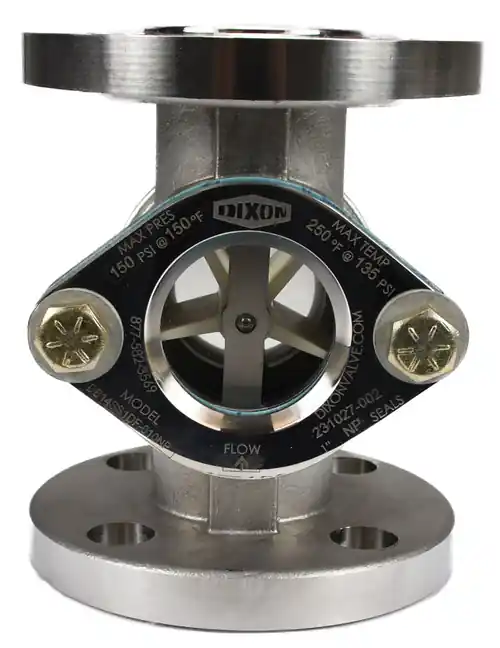

Dixon Series 14 Sight Flow Indicator 3/4 in. #150 TTMA Flange Neoprene Seal Delrin Propeller

Description

Dixon engineered industrial sight flow indicators are designed for fluid processes. These indicators are used to view the material flow direction, color, and clarity. Various sizes, indicator types, and seals are available to cover many typical industrial fluid applications. Constructed from 316 Stainless Steel, Dixon 14 Series sight flow indicators feature Neoprene seals. FeaturesReliable O-ring lens seal Maintenance-free design Easy to install Propeller indicator: Standard, unidirectional flow Applications: Water Air Petroleum Products Chemicals & Solvents SpecificationsPart Number: DB14SS1DF-007NP Indicator: Delrin Propeller Size: 3/4 in. Material: 316 Stainless Steel Seal: Neoprene Temperature Range: -20°F to 250°F Length: 4.7 in. Flange Diameter: 3.9 in. (
# Bolts) Bolt Hole Size: (4) 0.6 in. Sight Opening Diameter: 1.5 in. Raised Face Diameter: 1.7 in. Flange Thickness: 0.5 in. Pressure Rating: 200 PSI @ 150°F
