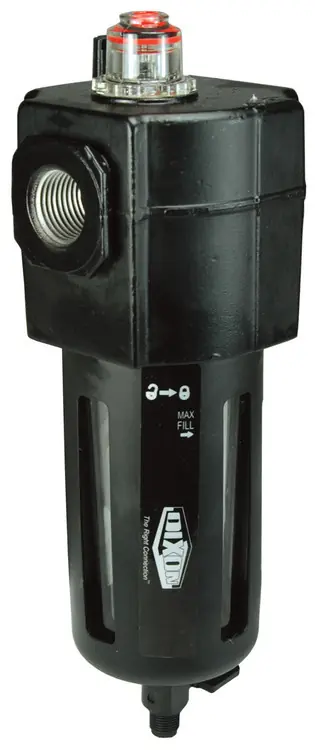

Dixon Series 1 L74 3/4 in. Standard Micro-Fog Lubricator with Transparent Bowl

Description

Dixon Series 1 standard size micro-fog lubricators with a transparent bowl. Micro-fog lubricators, identified by a red adjusting screw, are used for applications containing one or more points of lubrication, cylinders and multiple or single tools.

Features

7 oz. reservoir
In-line or modular installation
Quick release bayonet bowl
Micro-fog design delivers aerosol mist
Recommended lubricants: misting type oil rated 50 to 200 SSU (ISO Grade 7 to 46) at 100°F
Maximum operating conditions: transparent bowl: 150 PSI and 125°F
The micro-fog lubricator delivers 10% of the oil drops visible through the transparent sight-feed dome
