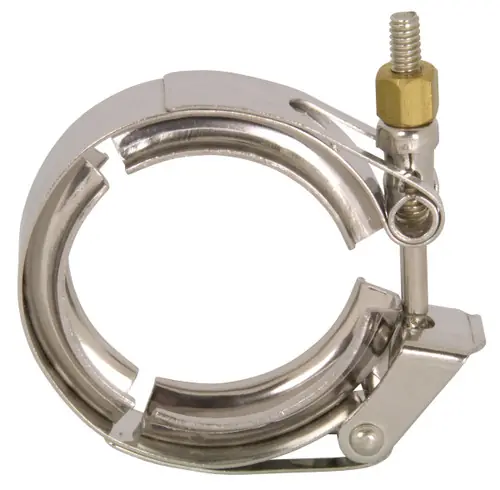

Dixon Sanitary 13MO Series T-Bolt Clamps

Description

Dixon Sanitary 13MO T-bolt clamps are constructed from 304 Stainless Steel and feature a 3A sanitary finish on both the ID and OD. Features Material: 304 Stainless steel 3A Sanitary finish 1″ – 3″ nuts tightened to 20 in. lb. of torque 4″ to 30 in. lbs. of torque 6″ to 40 in. lbs. of torque 8″ – 10″ 50 in. lbs. of torque Specifications             Tube ODPressure Rating @ 70ºFPressure Rating @ 250ºFDim A 1″-1½” 500 PSI 250 PSI 2.080″ 2″ 350 PSI 200 PSI 2.610″ 2½” 300 PSI 150 PSI 3.140″ 3″ 200 PSI 100 PSI 3.670″ 4″ 100 PSI 75 PSI 4.780″ 6″ 75 PSI 50 PSI 6.690″ 8″ 50 PSI 40 PSI 8.690″ 10″ 40 PSI 30 PSI 10.690″ 12″ 30 PSI 25 PSI 12.690″Specifications
