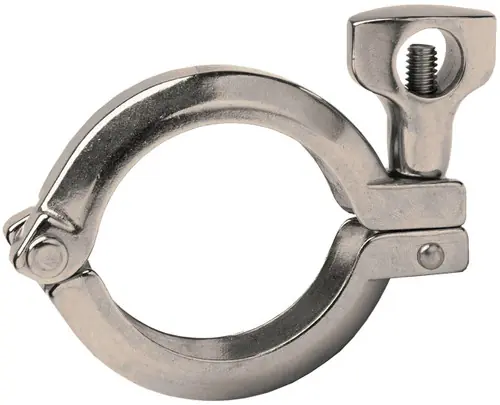

Dixon Sanitary 13MHHV Series 304 Stainless Pipe Size Single Pin Heavy Duty Clamps

Description

Your pipe fittings applications demand quality and reliability and expeditious deliveries. Note: Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydrostatically with no water hammer or shock loads. Features Material: 304 Stainless steel Wing nut tightened to 25 in. lbs of torque Dimensions Pipe SizePSI @ 70°F(21°C)Dimension ASKU 1″ 500 2.122″ DX13MHHV100 1 1/2 ” 450 2.654″ DX13MHHV150 2″ 400 3.185″ DX13MHHV200 2 1/2″ 350 3.717″ DX13MHHV250 3″ 250 4.263″ DX13MHHV300 4″ 150 5.263″ DX13MHHV400
