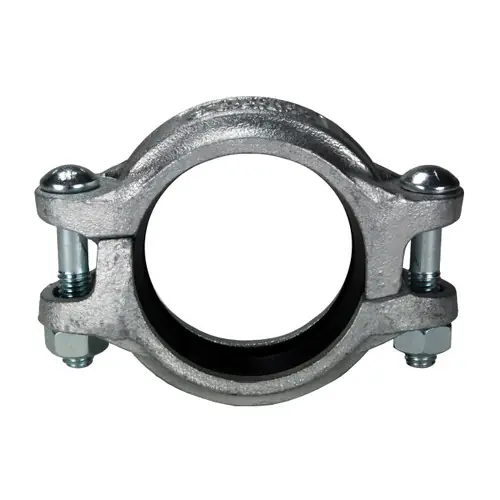

Dixon R Series Style 5 Ductile Iron Rigid Coupling w/ EPDM Gasket

Description

Ideal for fire protection, plumbing, low pressure air and drainage. Features Lightweight, low pressure Ductile iron body with rust inhibiting paint Small gripping teeth hold the housing into the groove allowing a straight run of pipe and preventing any fleat the joint Underwriters Listed and Factory Mutual approved Specifications Size: 2 – 8 in. Maximum End Load: 2 in.: 4425 Lbs. 2 1/2 in.: 6490 Lbs. 3 in.: 9620 Lbs. 4 in.: 12720 Lbs. 6 in.: 27570 Lbs. 8 in.: 35050 Lbs. MaWorking Pressure: 175 PSI Material: Ductile Iron Gasket: EPDM
