Dixon Flomax 1 in. NPT Violet High Flow Series Receiver – 1 in. NPT – Violet High Flow Receiver w/ Cap

Description

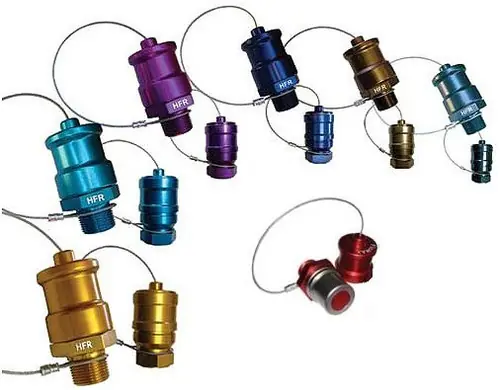

7 nozzle and receiver sets color coded for quick identification of mating parts; each color nozzle and receiver only couples with matching color component provides complete protection against cross contamination. FeaturesNozzle/receiver combination has a flow area equivalent to a 1 in schedule 80 pipe All wear parts are stainless steel providing long life and corrosion resistanceAll non-wear parts are colored anodized aircraft grade aluminum providing high strength, lightweight and corrosion resistanceStandard nozzle mounting is a 1 in female NPT and for the receiver a 1 in male NPT; receivers supplied with 1 in female NPT threaded baseNozzle incorporates a “ball lock” mechanism ensuring smooth and reliable operation SpecificationsNozzle length: 3.90 in (99 mm) Receiver length: 3.44 in (87 mm) Nozzle and receiver coupled length: 5.44 in (138 mm)Diameter: 2.50 in (64 mm)Hesize: 2 in (51 mm) Working pressure: 500 psi, with burst pressure: 1500 psi
