Dixon FloMAX 1 in. Male NPT High Flow Series Receiver

Description

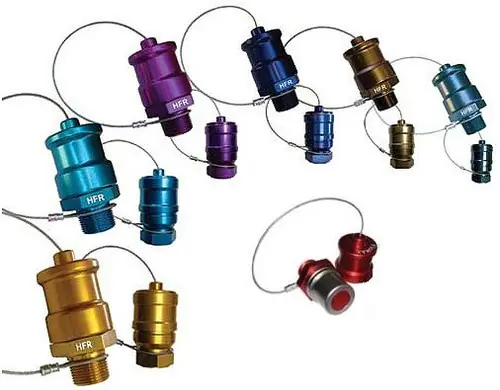

7 nozzle and receiver sets color coded for quick identification of mating parts; each color nozzle and receiver only couples with matching color component provides complete protection against cross contamination.

Features

Nozzle/receiver combination has a flow area equivalent to a 1 in schedule 80 pipe
All wear parts are stainless steel providing long life and corrosion resistance
All non-wear parts are colored anodized aircraft grade aluminum providing high strength, lightweight and corrosion resistance
Standard nozzle mounting is a 1 in female NPT and for the receiver a 1 in male NPT; receivers supplied with 1 in female NPT threaded base
Nozzle incorporates a “ball lock” mechanism ensuring smooth and reliable operation

Specifications

Nozzle length: 3.90 in (99 mm)
Receiver length: 3.44 in (87 mm)
Nozzle and receiver coupled length: 5.44 in (138 mm)
Diameter: 2.50 in (64 mm)
Hesize: 2 in (51 mm)
Working pressure: 500 psi, with burst pressure: 1500 psi
