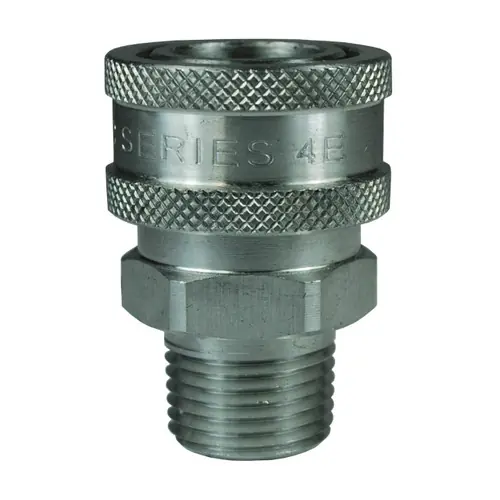

Dixon E-Series Hydraulic 303 Stainless Steel Straight Through Interchange Male Coupler

Description

Dixon E-Series Straight Through Interchange Male Couplers are made from 303 stainless steel bar stock and have stainless steel balls, retaining rings and springs to maximize corrosion resistance and extend service life. These couplers have no internal valves, providing maximum flow with minimum pressure drop. Interchanges with Parker ST, Foster FST, Hansen ST, and Tomco ST series fittings.
Note: Do not disconnect with pressure in line.

Features

Straight-through pressure-wash interchange
Machined components are manufactured using 303 stainless steel bar stock
Nitrile (Nitrile Rubber) seals are standard, providing a temperature range of -40°F – +250°F (-40°C – +121°C)
Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
Couplers have no internal valves, providing maximum flow with minimum pressure drop
Interchanges with Parker ST, Foster FST, Hansen ST, and Tomco ST series fittings

Specifications
Dimensions and Pressure Ratings

Body SizeMale ThreadsMaterialLengthMaximum ODHexWorking Pressure

1/8 in.
1/8 in. – 27 NPTF
303 Stainless Steel
1.01 in. (25.7 mm.)
0.65 in. (16.5 mm.)
9/16 in.
4,200 PSI (290 Bar)

1/4 in.
1/4 in. – 18 NPTF
303 Stainless Steel
1.66 in. (42.2 mm.)
0.96 in. (24.4 mm.)
13/16 in.
6,700 PSI (462 Bar)

3/8 in.
3/8 in. – 18 NPTF
303 Stainless Steel
1.70 in. (43.2 mm.)
1.13 in. (28.7 mm.)
1 in.
5,500 PSI (379 Bar)

1/2 in.
1/2 in. – 14 NPTF
303 Stainless Steel
2.00 in. (50.8 mm.)
1.27 in. (32.3 mm.)
1-1/8 in.
3,000 PSI (207 Bar)

3/4 in.
3/4 in. – 14 NPTF
303 Stainless Steel
2.24 in. (56.9 mm.)
1.65 in. (41.9 mm.)
1-1/2 in.
3,000 PSI (207 Bar)

1 in.
1 in. – 11.5 NPTF
303 Stainless Steel
2.61 in. (66.3 mm.)
2.02 in. (51.3 mm.)
1-3/4 in.
1,700 PSI (117 Bar)

Technical Specifications

Interchange StandardsFunctional Parameters
Body SizeU.S. MilitaryU.S. GovernmentInternational StandardsANSI/NFPA StandardsLocking Ball QuantityAir InclusionFluid LossVacuum RatingFlow â–³P = 15 PSI

1/8 in.
–
–
–
–
6
N/A
N/A
N/R
3 GPM

1/4 in.
–
–
–
–
6
N/A
N/A
N/R
6 GPM

3/8 in.
–
–
–
–
8
N/A
N/A
N/R
14 GPM

1/2 in.
–
–
–
–
8
N/A
N/A
N/R
24 GPM

3/4 in.
–
–
–
–
8
N/A
N/A
N/R
58 GPM

1 in.
–
–
–
–
8
N/A
N/A
N/R
100 GPM
