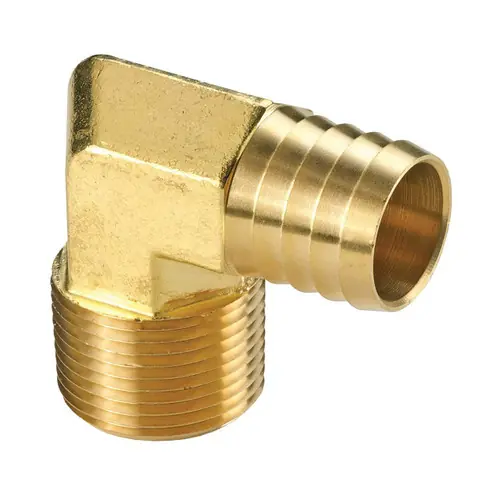

Dixon Brass 90° Elbows NPT Male Insert Fittings

Description

Dixon brass 90° elbow for standard male pipe, the hose fittings are compatible with low pressure rubber and elastomeric general service air and water hoses, low pressure hydraulic and contractor water hoses. Worm gear clams and crimp ferrules are required.

Specifications

Economy, corrosion resistance
Hose ID Male NPTF
Working pressure: 250 PSI maximum @ 72°F (22°C)
Operating temperature range: -40°F to 160°F (-40°C to 71°C) at 150 PSI maximum
Not vacuum rated
Forged C3604 Brass alloy
Compliance (thread ends): SAE J476, J512, J514 and J516

Applications

Industrial air and non-potable water service
Compressor lines and pneumatic tools & low pressure spray
Construction air
Water transfer
