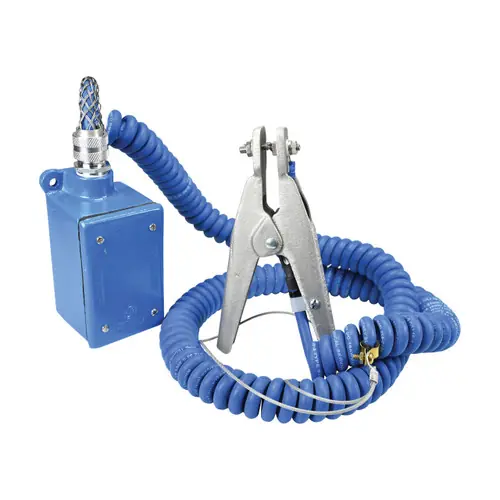

Dixon A540 Series Ground Clamp & Junction Box

Description

The A540 Series ground clamps are key to creating a quality temporary connection for antistatic grounding applications. The clamp features three teeth to penetrate dirt, corrosion, and road grime when in use. The teeth are constructed of stainless steel to ensure lasting operation, and isolated from the clamp handle to allow operators to establish ground and a ground-verification signal in a single clamp action. The A540 also includes a high durability cable and junction bofor convenient wiring access during installation and maintenance. Features Clamp tethered to cable by stainless steel strap to protects connection from strain and wear Pull-out resistant cord grip on junction boholds cable tighter the harder it is pulled Junction bocreates convenient service point for hazardous location installations Coiled cable for compact storage Strong clamping force to penetrate grime and remain connected during loading process Can provide ground and a ground-verification signal in a single clamp Specifications Jacket: Thermoplastic Elastomer Teeth: Stainless Steel Cable Length: 25 ft. Stretched Resistance: 0.14? (6m?/foot) Temperature rating: -40°F to 194°F (-40°C to 90°C) Ingress protection: weatherproof, raintight, and dust tight Conduit entries: one 3/4 in. trade size hole and a factory-installed cable on the bottom Suitable for installation in hazardous locations: Class I, Division 1 & 2, Groups B, C, and D hazardous locations, Class II, Division 1 & 2, Groups E, F, and G hazardous locations and Class III hazardous locations Suitable for connection to hazardous locations: Class I, Division 1 & 2, Groups A, B, C, and D hazardous locations and Class I, Zone 0, 1 & 2, Groups IIC, IIB, and IIA hazardous locations Recommended wire between controller and the clamp: 18 GA stranded copper wire (THHN) Applications Common applications for the A540 series ground clamp include: Tank truck and Rail car loading facilities Drum and barrel filling sites Loading of stationary tanks Downloads Product Manual (PDF Download)
