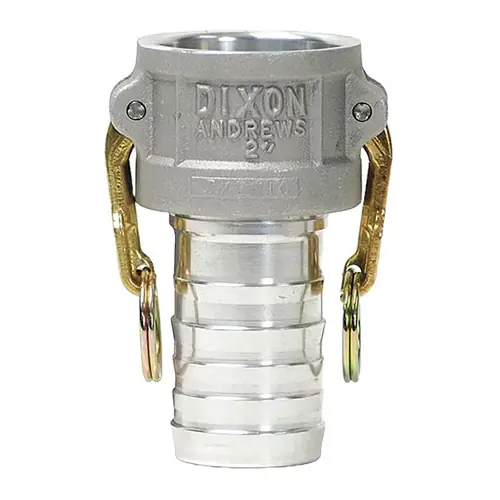

Dixon 6 in. Aluminum Cam & Groove Couplers

Description

Dixon 6 in. Aluminum Cam & Groove Couplers constructed from 356T6 AluminumNOTE: Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating is based on the seal of the mating part. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. . Only use the crimp style shanks with the crimp style sleeves and ferrules. Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer’s products with Dixon products.

Features

Maximum Operating Pressure: 75 psi
Designed for use with liquids, consult Dixon for specific recommendations
Produced to interchange with all product produced to Commercial Item A-A-59326D
Precision machined to rigid tolerances
Couplers are supplied with a Nitrile Rubber gasket
Stainless steel pins will not rust or bind, providing great strength and safety
Recess holds gasket firmly in place – ensures proper placement
Long shank design allows proper banding, thus eliminating the major cause of hose damage
