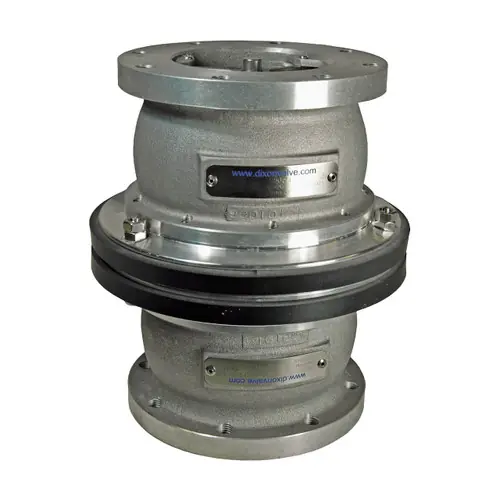

Dixon 4 in. Aluminum TTMA Flanged Breakaway Coupling

Description

Coupling is designed to minimize spillage and damage associated with drive away and pull away incidents. Installs between an API coupler and loading arm. Features Minimizes spillage and damage associated with drive away and pull away incidents Coupling automatically senses excessive load, closes the valves and disconnects, release is executed when force causes the bolts to break High flow rate / low pressure drop Specifications Size: 4 in. Length: 9.5 in. Width: 8.3 in. MaWorking Pressure: 230 PSI Material: Aluminum Seal: FKM
