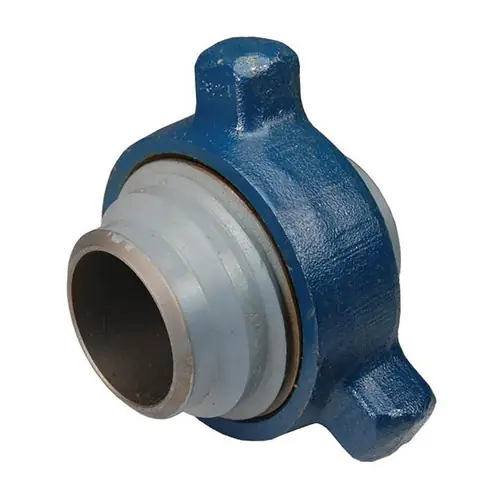

Dixon 200 Series Threaded Hammer Unions

Description

Dixon 200 Series threaded hammer unions work at extremely high pressures, mismatching components of one series with another can lead to destruction of property, bodily injury and/or death. Non-shocking cold water pressure means that the standard operating pressure is at ambient temperature. No spikes higher than this pressure. No instantaneous pressure increases , example 0-2000 PSI in 1/4 of a second. Specifications Metal to metal sealing surface Used in general service applications running air, water, oil or gas up to 2,000 PSI NSCWP 1 in. is 2X 1 in. Female NPT & 2 in. is 2X 2in. Female NPT Ambient temperature 70° F (21° C) Temperature range -20° F to 250° F (-29° C to 121° C) Gray sub and blue nut Forged steel Downloads HU200100 Dimensions (PDF Download) Catalog Page (PDF Download)
