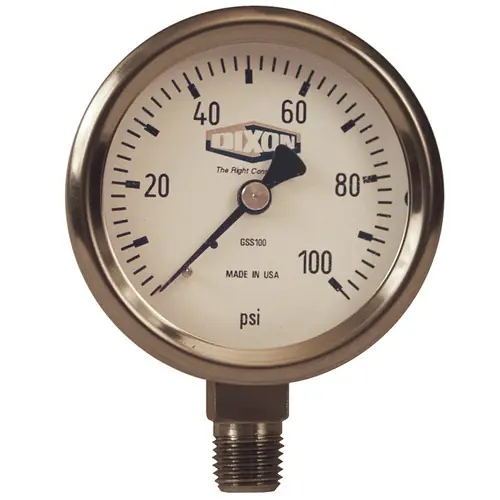

Dixon 2 1/2 in. Face Lower Mount Stainless Steel Dry Gauges

Description

The Dixon Stainless Steel Dry Gauges provide the corrosion resistance and durability of a permanently sealed gauge. Designed for severe service applications. Dial Specs               SKU PSI Range Figure Interval Graduation Interval     DXGSS15 0-15 3 0.5     DXGSS30 0-30 5 0.5     DXGSS60 0-60 10 1     DXGSS100 0-100 20 2     DXGSS160 0-160 20 2     DXGSS200 0-200 40 5     DXGSS300 0-300 50 5     DXGSS400 0-400 50 10     DXGSS600 0-600 100 10     DXGSS1000 0-1000 200 10     DXGSS1500 0-1500 200 20     DXGSS2000 0-2000 400 20     DXGSS3000 0-3000 500 50     DXGSS5000 0-5000 1000 100     DXGSS10000 0-10000 2000 200              Features ± 2-1-2% accuracy 304 stainless steel case and crimp ring Polycarbonate window Figure interval: 3 Minor gradient: 0.2 1/4″ NPT lower mount stainless connector 316 stainless bourdon tube and socket Ambient temperature range: -40°F to 140°F
