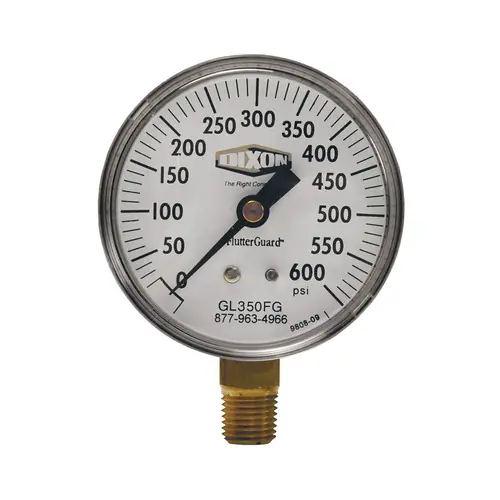

Dixon 2 1/2 in. Face Lower Mount FlutterGuard Dry Gauge

Description

FlutterGuard™ virtually eliminates pointer flutter, making the gauge easier to read and reducing excessive movement wear. Liquid-free casing results in lighter weight and eliminates the chance of gauge leakage. Features ASME B40.1, Grade B (+/- 3-2-3% accuracy) ABS plastic case C-shaped bronze safety bourdon tube (600 PSI and lower) Helical wound bronze safety bourdon tube (1000 PSI and higher) Polycarbonate crystal Black aluminum pointer PowerFlemovement with polyester segment, designed to resist the effects of shock, vibration, and pulsation Ambient temperature range of -40°F to 150°F Dial Specs               SKU PSI Range Figure Interval Minor Graduation     DXGL300FG 0-15 1 0.5     DXGL320FG 0-30 5 0.5     DXGL325FG 0-60 5 1     DXGL330FG 0-100 10 2     DXGL335FG 0-160 20 5     DXGL340FG 0-200 20 5     DXGL345FG 0-300 30 5     DXGL347FG 0-400 50 10     DXGL350FG 0-600 50 10     DXGL355FG 0-1000 200 20     DXGL360FG 0-1500 300 50     DXGL365FG 0-2000 400 50     DXGL370FG 0-3000 500 100     DXGL375FG 0-5000 1000 100
