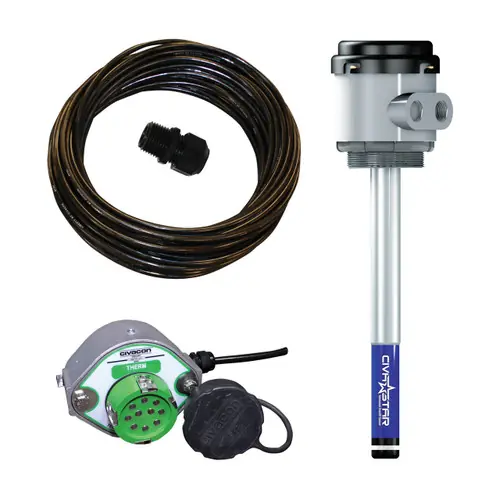

Civacon AV2-1 Single Compartment Hard-Wire Aviation Kit, 2-Wire, Green Thermistor Socket, 12 in. Sensor

Description

Civacon 2-Wire Aviation Refueler Kits provide simple, easy to install solutions to upgrading single compartment refueler trucks to meet the Paragraph 5.1.12.2 primary shutdown system requirements of NFPA 407-17. Notes: Kits include the necessary wire splicing connectors. All sockets include a ground wire (built-in) – no need for a separate external ground bolt. Two compartment Ground Service Refueler Trucks will need two kits – one for each compartment. Features Hard-wired 2-wire kit with green socket LED visual verification system on sensor Fully compatible and compliant with NFPA 407-17’s primary shutdown system requirements Each kit comes with all needed equipment, wiring and accessories Specifications CivaStar Advanced Overfill Sensor: Wiring: 2-Wire Length: 12 in. Housing: 2 in. NPS Cap O-ring Seal: Silicone Locking Nut: Plated Steel Viscosity: Less than 1000 SSU Prism Snap Ring: Stainless Steel Weight: 1.15 lbs. (0.521 kg) Operating Temperature: -40°F (-40°C) to 158°F (70 °C) Overfill Socket: Type: 2-Wire Thermistor (Green) Style: 4 J Slot with 10 Pins, Ground Wire Housing: Aluminum Connector Nose: ValoComposite J-Slot Inserts: Nickel-Plated Zinc Aluminum Contact Pins: Stainless Steel Dimensions: 5.75 in. W 4.75 in. H 3.5 in. D Weight: 2.5 lbs. (1.1 kg) Operating Temperature: 40°F (-40°C) to 160°F (70°C) Kit Contents (1 QTY.) Sensor, CivaStar, 2 Wire, Unicolor, 12 in. Long, with 2 in. NPS Housing (Part: 5610U-12) (1 QTY.) Socket, Next Gen, 2-Wire, Thermistor, Green, 4 J-Slots, with Ground Wire (Part: 4432-4432) (1 QTY.) 50 ft. Cable, 5-Wire Jacketed, 18 AWG, Tinned (Part: 99750) (2 QTY.) Strain Relief, 1/2 in. NPT, for 0.17 in. to 0.45 in. Cable Diameter (Part: H50221M)
