Chemline Plastics Electric Actuator for Type 25 TU Ball Valves

Description

The Chemline Plastics ERS-Series Electric Actuator is a reversible rotary unit with output torques up to 180 in. per lb. and are ideal for use on Chemline ball valves up to 2 in. The ERS Series is lightweight, compact and has a polyamide PA6 housing. Comes with a large black handle that provides manual override and position indicator.

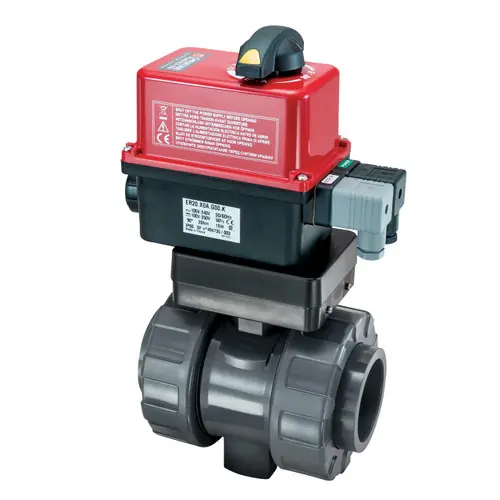

TU ball valve not included, image has actuator attached on top of ball valve.

Features

External electrical connection
Detachable manual override /position indicator
Eliminates need to open actuator cover
Simplifies and speeds up actuator wiring and commissioning
Allows actuator connection to DIN and M12 prewired products
Thermal switch embedded onto control board
Fixed mechanical travel stops for ¼-turn operation, not included for 180-degree operation
Irreversible gearing: no accidental backing off fully closed position and no need for supplementary braking
Permanently lubricated gear train
Electronic over torque limiter
Mounting bolt circle and drive socket in the base with dimensions according to ISO 5211
Labels permanently marked with manufacturing number to provide production traceability

Specifications

Standard model electric actuation
CSA Inspection labelled
Suitable for voltages 120/240 V AC, 3-wire on-off control
PC control board
On-board 4-watt heater/thermostat
Polyamide PA6 housing
NEMA 4XIP66 rated enclosure
50% duty cycle
2feedback limit switches
Declutch able manual override and position indication
Operating Temperature range: 15°F to 140°F (-10°C to 60° C )

Downloads
Specification Sheet (PDF Download)
Instructions (PDF Download)
Datasheet (PDF Download)
