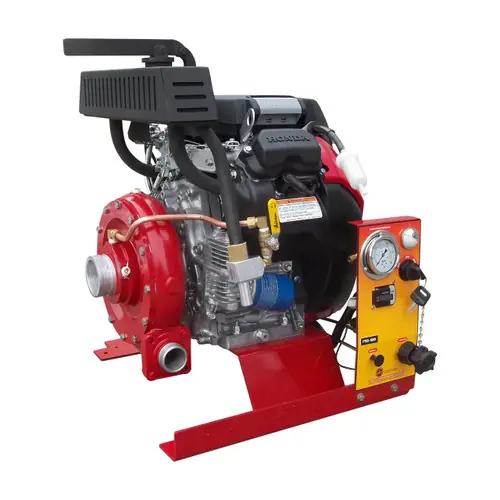

C.E.T. 20 HP Honda-Powered Pressure and Volume Mid-Range Pump

Description

C.E.T.’s Pressure/Volume Pump is the most suitable for drop-in units. The engine and pump are mounted on a steel skid frame that is easily mountable on vehicles and trailers. Pump Specifications C.E.T. single stage centrifugal pump Pump body made from high resistant aluminum alloy Bronze impeller Mechanical shaft seal Exhaust priming system, guaranteed up to 20 ft. lift (1) 1 1⁄2″ (38 mm) delivery outlet with 1/4 turn ball valve (1) 2 1⁄2″ (65 mm) suction inlet MaFlow Rate: 300 GPM; 240 GPM @ 50 PSI, 125 GPM @ 150 PSI and 60 GPM @ 200 PSI MaPressure: 205 PSI Dimensions: Length 19 3/4 in. (502 mm.); Width: 24 1/4 in. (615 mm.); Height 24 3/4 in. (630 mm.) Limited Warranty: 3 Years Engine Specifications GX630 Honda air cooled engine V-Twin cylinder, 4-stroke gasoline engine Electric start 6 gallon (22 l) detachable fuel tank Charge coil 12V-17A Included Accessories: Low oil alert Pressure gauge Quick connect for 12V battery Downloads PFP-20hpHND-MR Instruction Handbook (PDF Download) PFP-20hpHND-MR – Drawing (PDF Download) Honda GX630 Engine Owners Manual (PDF Download)
