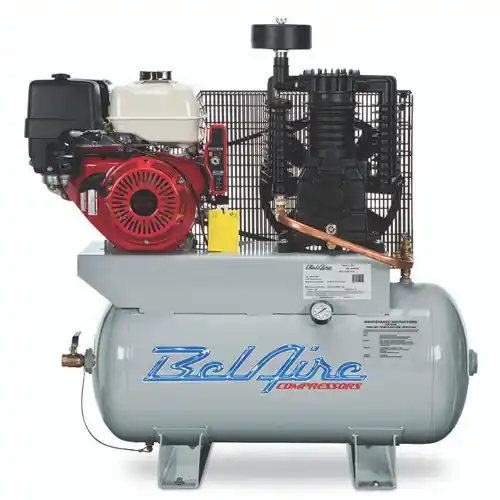

BelAire 3G3HHL Truck Mount Two-Stage 30 Gallon Air Compressor w/Honda GX Engine, 13 HP

Description

This is a compressor ideally suited for service truck applications. Powered by a 13 HP Honda engine this compressor supplies a full 25.25 CFM. Other features include 175 PSI maximum pressure engine slowdown ASME safety valves tank discharge valve start key/panel oil monitor and a 30 gallon horizontal ASME tank.

Features

Built for service professionals to handle the toughest situations
13 HP Honda GX Engine is easy starting, proven reliability
Two-Stage cast iron cylinder pump
12 Volt electric start & recoil start, wire into your ignition system or start it yourself. Control panel is easy to operate
Easy to read pressure gauge
Fully enclosed belt guard protects the belt & the operator
EZ pull tank drain makes tank maintenance simple & convenient

Specifications

30 Gallon horizontal tank with 3/4 in. ball valve outlet
13 HP Honda GX with 12V key start w/recoil and electric carrot
Fuel type=Gasoline
Aluminum w/cast iron sleeve two-stage pump
25.3 CFM @ 90 PSI
Mapressure 175 PSI
Belt drive
Oil sight glass
Oil splash lubricated
Use 30 W Non Detergent Oil
45 in. L 19 n. W 45 in. H
ASME certified
2 Year full factory warranty

Downloads
Manual (PDF Download)
