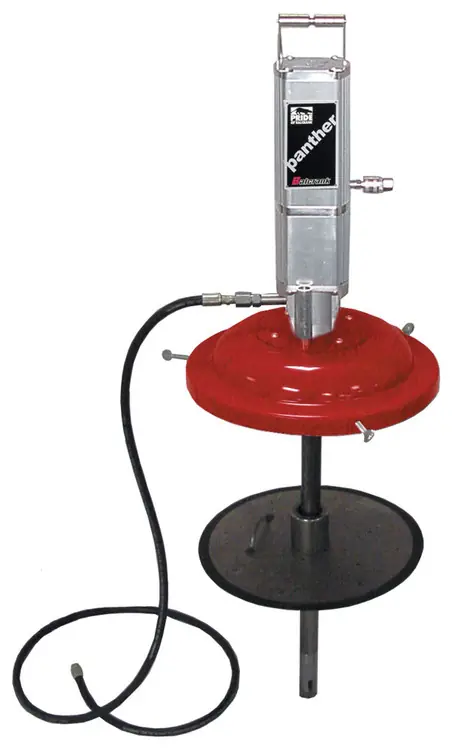

Balcrank Panther HP 50:1 Stationary Outfit – 120 lb

Description

Includes bare pump, air hose, fluid hose, drum cover, and follower plate. Features Mechanical air valve is more reliable and doesn’t stall or ice up Designed for lower air consumption for less wear on compressor Built in muffler promotes quiet operation and eliminates icing Precise, machined finishes and hardened lower piston assembly increases performance and lifespan Double acting pump produces 50:1 output pressure and accepts a 30-mesh inlet screen to remove foreign contaminants from entering the system Package Contents Fluid hose – 10′ 1/2″ Air hose – 5′ 3/8″ Drum cover Follower plate Specifications Air Motor Bore: 3.5 Eff. Diameter: 2.44″ Stroke: 3.25″ Operating Air Pressure Range: 40-150 PSI Air Consumption: 14.5 SCFM Free Flow GPM @ 100 PSI Air: 3.5 Air Inlet NPT: 1/4″ Fluid Outlet: 1/4″ Wetted Materials: Carbon Steel, Nitrile Rubber, Brass, Stainless Steel, Delrin, Ultrathane
