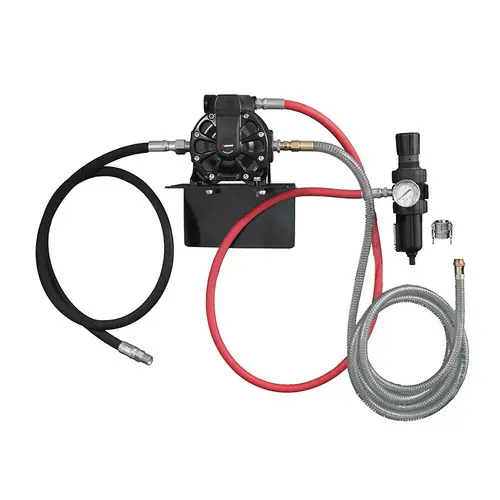

Balcrank CenterFlo CF50 Oil Evacuation Package

Description

Evacuation system for used oil disposal that uses Balcrank’s CF50, a high performance 1 in. AODD pump that utilizes a flow through fluid design that is more air efficient than traditional AODD pumps. Capable of distributing up to 50 gal/min. This equates to higher performance, versatility along with easy serviceability. Note: For use with Used oil, anti-freeze, synthetic and mineral based motor oils and windshield washer solution. Specifications Ratio: 1:1 Fluid Inlet/Outlet: 1 in. NPT(F) Air Inlet: 3/8 in. NPSM(F) MaFlow Rate: 53 GPM Delivery per Stroke: 17 oz. Air Pressure Operating Range: 22-115 PSI Solid in Suspension MaSize: 1/8 in. Maximum Suction Head: 16.5 ft. dry; 26.2 ft. wet Package Contents Aluminum CF50 Diaphragm Pump (1120-037) 3/8 in. 5 ft. LP Hose Assembly (8134-005) 1 in. 5 ft. MP Hose Assembly (8281-005) 1 in. 5 ft. LP Hose Assembly (8182-005) 1 in. Cam-Lock Coupler (4140-017) 3/8 in. NPT(F) LP Air Ball Valve – No Bleed (3230-019) 1 in. NPT(F) LP Air Ball Valve – No Bleed (3230-022) 3/8 in. NPT(F) F/R Auto Drain (3260-035) Mounting Bracket for CF50 AODD Pump (4411-036) 1 in. NPT(F) Y-Strainer (3120-219) Cam-lock Dust Plug 1 in. (4140-053) Downloads CF50 Oil Evacuation Package – AODD Pump Manual (PDF Download) Specification Sheet (PDF Download)
