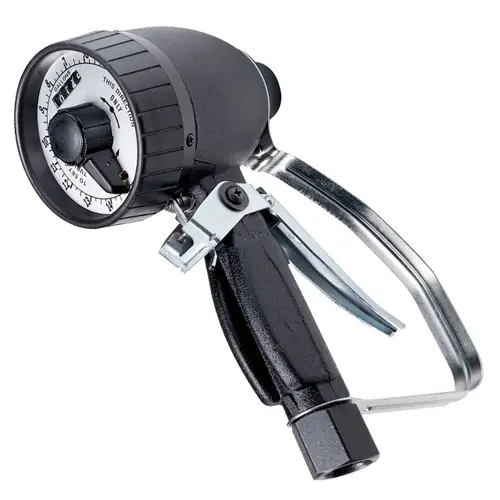

Badger Meter Pistol Grip Batch Meter w/Trigger Guard, 1/2 in. Female NPT

Description

Badger Meter’s OP meters Pistol Grip (PG) series works with a variety of petroleum products that service automobiles, trucks, buses, construction equipment, and indoor/outdoor applications. Its balanced, lightweight, rugged construction and comfort grip make it the best choice for overhead hose reels and other fluid applications. The PG batch meter includes a trigger guard and can handle a variety of petroleum products, such as automatic transmission fluid, SAE 5 to 50 motor oils, SAE 80 to 240 gear oils, and antifreeze fluid (ethylene glycol). Specifications 1/2 in. Female NPT ( 1/2 in. BSPP) Includes trigger guard Cast aluminum housings are coated with an oven-baked epoxy finish to resist scratches A high impact resistant nylon shroud protects the knob and dial from damage Standard model PG, the knob is reset counterclockwise to zero after delivery Aluminum body Buna Seals 30 in. NPT Rigid tube with tip bend automatic outlet nozzle UOM dial 16 quart, totalizer quarts Reserved, with no certification Flow: 0.4 GPM to 4 GPM ( 1.5 LPM to 15 LPM) Flow rate may vary with fluid viscosity MaOperating Pressure: 1000 PSI ( 67 Bar) Operating temperature: -10° F to 110° F ( -20° C to 45° C) Accuracy: ±0.65% 3.86 in. W 5.46 in. D 8.45 in. H Weight: 3.3 lb. ( 1.5 kg) Downloads Data Sheet (PDF Download) Parts Sheet (PDF Download)
