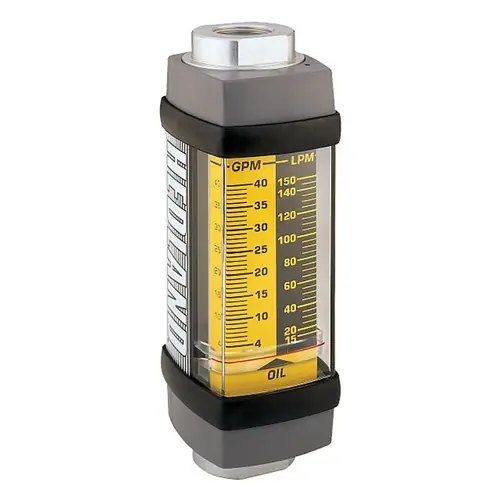

Badger Meter Hedland Variable Area Petroleum Flow Meter, Brass, 1/4 in. Female NPT

Description

The Hedland petroleum fluid meter is the most readable product in its class, with direct reading capabilities and an easy-to-read linear scale. Easy to mount in any position or orientation without affecting accuracy, this mechanical flowmeter has an innovative spring loaded variable area design that lets you mount unit in any position without affecting accuracy.Not intended for potable water applications (human consumption – drinking and cooking) and has not been designed to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable water applications. This item is for use only in non-potable (non-human consumption) water applications. Features For use in a wide range of industrial processes that require petroleum fluid monitoring. Durable, aluminum construction provides an economical solution for monitoring noncorrosive petroleum-based or water-based fluids. Magnetic coupling, eliminates the need for mechanical linkages. Specifications Variable area mechanical flow meter 1/4 in. FNPT connection For 1/4 in. pipe size No flow straighteners or special piping required For Petroleum fluids -20°F to 240°F fluid temperature range 3500 PSI mapressure Relatively insensitive to shock and vibration Brass housing and wetted parts Viton seal 500 SUS maviscosity ±7% Full scale accuracy Calibrated for 0.876 Specific gravity Part NumberFlow Range50% Pressure Drop100% Pressure Drop H201A-005 0.05-0.5 GPM/ 0.2-1.9 LPM 3 PSI 5 PSI H201A-010 0.1-1.0 GPM/0.5-3.75 LPM 4 PSI 9 PSI H201A-020 0.2-2.0 GPM/1-7.5 LPM 6 PSI 13 PSIDownloads Flow Meter Data Catalog (PDF Download) Brochure (PDF Download) Manual (PDF Download)
