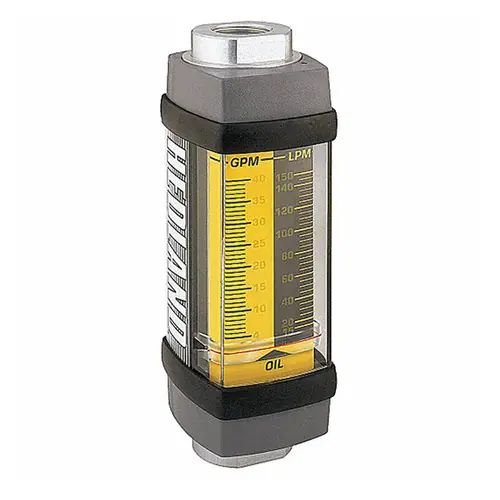

Badger Meter Hedland Variable Area Oil Flow Meter, 12 SAE Aluminum Fitting

Description

Aluminum high pressure flow meter for oil & petroleum fluids is an industrial class variable area flow meter designed to be used to measure the flow of petroleum and petroleum-based fluids. These low cost yet rugged in-line meter features high quality metal construction in anodized aluminum. The flow meter has the easiest to read scale in its class. With bold easy to read numerals and gauge marks which virtually eliminate parallaproblems associated with other flow meters. Specifications 12 SAE connection 3/4 in. nominal port size Max. pressure: 3500 PSI/ 241 bar Temperature range -20°F to 240°F(-29° to 205°C) Accuracy: ±2% of full scale Repeatability ±1% Specific gravity: 0.876 Have a direct-reading 360° rotatable scale and guard Install in any position without sacrificing accuracy Easier to read linear scale No flow straighteners or special piping required Relatively insensitive to shock and vibration Good viscosity stability Viton® seals T302 Stainless steel spring Retaining spring & ring SAE 1070/1090 carbon steel Polycarbonate guard Nylon end caps SAE certified J1926/1 Part
#Flow-Rate50% Flow Pressure Drop100%Flow Pressure Drop H700A-005 0.5 to 5 GPM/ 2 to 19 LPM 2.5 PSI 3.5 PSI H700A-010 1 to 10 GPM/5 to 38 LPM 3.5 PSI 9.0 PSI H700A-020 2 to 20 GPM/10 to 76 LPM 4.0 PSI 9.0 PSI H700A-030 3 to 30 GPM/10 to 115 LPM 7.0 PSI 16.5 PSIDownloads Flow Meter Data Catalog (PDF Download) Brochure (PDF Download) Manual (PDF Download)
