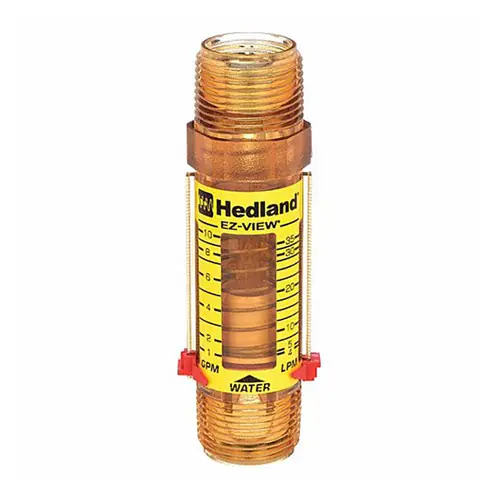

Badger Meter Hedland Variable Area EZ-View Water Flow Meter w/Sensor, Polysulfone Body & Fitting, 1 in. Male NPTF

Description

Easy to mount in any position without costly flow straighteners or other special piping, the Hedland EZ-View water flowmeter provides instantaneous, direct-reading flow rate measurement of liquids in a closed piping system. The EZ-View requires no electrical connection and provides measurement by creating a predictable differential pressure across a sharp-edged orifice that is located in the piston assembly. The flow meter has an innovative spring loaded variable area design that lets you mount unit in any position without affecting accuracy. The clear body allows you to visually inspect fluid condition and to view the internal flow indicator relative to a calibrated flow scale. Specifications Variable area mechanical flow meter EZ-view transparency Includes sensor 1 in. Nominal polysulfone fitting For 1 in. pipe size 0.5 to 4 GPM/1.5 to 15 LPM No flow straighteners or special piping required Easy to install in any position No Electrical connections Direct reading indication For water and other liquids 32°F to 250°F fluid temperature range 325 PSI/ 22.4 bar mapressure ±5% accuracy at full scale ±1% repeatability Relatively insensitive to shock and vibration Polysulfone body, fitting, piston & cone Nitrile Rubber N flow indicator ring & pressure seals T300 series stainless spring Polypropylene limit indicators Downloads Flow Meter Data Catalog (PDF Download) Brochure (PDF Download) Manual (PDF Download)
