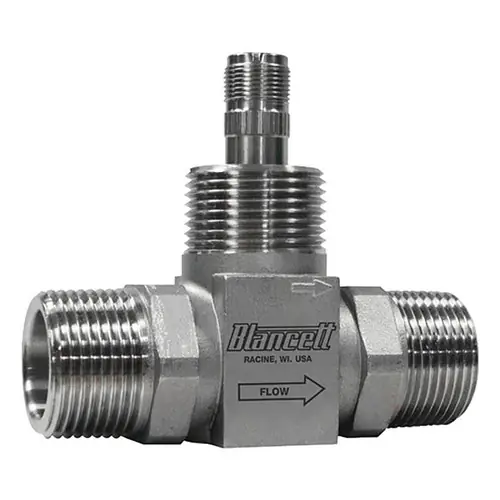

Badger Meter Blancett® B1100C Explosion-Proof Turbine Water Flow Meters w/No Magnetic Pickup

Description

Designed to withstand the demands of the most rigorous flow measurement applications, the Model 1100 Explosion-proof turbine flow meter is reliable, rugged and cost effective. Developed for the secondary oil recovery market, the explosion-proof meter is an ideal meter for liquid flow measurement on or off the oil field.The meter features a rugged 316 stainless steel housing and rotor support assemblies, CD4MCU stainless steel rotor, and abrasive-resistant tungsten carbide rotor, shaft, and journal bearings. The Model 1100 Explosion-proof meter maintains measurement accuracy and mechanical integrity in the corrosive and abrasive fluids commonly found in oil field water flood project and many industrial applications.

Features

Built for simple installation and service, requiring a minimum of 10 diameters upstream and 5 diameters downstream straight pipe length.
Designed to operate in any orientation (horizontal to vertical) as long as the flow direction arrow is aligned with the actual line flow.
Durable Construction, rugged 316 stainless steel housing and rotor support assemblies with CD4CU stainless steel rotor.
Offers accurate and repeatable flow measurement in ranges from 0.6 to 5000 GMP (20 to 171,000 bpd)
NIST traceable calibration
Installation in pipe sizes from 1/2 to 10 in.

Specifications

316 stainless steel body
CD4MCU stainless steel rotor
Tungsten carbide rotor shaft
316 stainless steel rotor support
-150° to 350°F (-101° to 177°C) Operating temperature, the meter should not be subjected to temperatures above 350° F or below -150°F or the freezing point of the metered liquid
NPT and grooved end connections
No magnetic pickup
10:1 Turndown ratio
±1% accuracy
±0.1% repeatability
Certified Class I Div 1 groups C, D to US & Canadian standards, UL 1203, ANSI/ISA 12.27.01-2003

Part NumberMaPSIStrainer MeshFlow RangesK-Factor Pulse/GalEnd to End Length

B110C-375-1/2
5000 PSI
60
0.6-3 GPM
18,000
4 in.

B110C-500-1/2
5000 PSI
60
0.75-7.5 GPM
13,000
3 in.

B110C-750-1/2
5000 PSI
60
2-15 GPM
3,3000
3 in.

B110C-875
5000 PSi
60
3-30 GPM
3,100
4 in.

B111C-110
5000 PSI
40
5-50 GPM
870
4 in.

B111C-115
5000 PSI
20
15-180 GPM
330
6 in.

B111C-120
5000 PSI
20
40-400 GPM
52
10 in.

B111C-121
5000 PSI
20
15-180 GPM
330
6 in.

B111C-130
800 PSI
10
60-600 GPM
57
12-1/2 in.

B111C-140
800 PSI
10
100-1200 GPM
29
12 in.

B111C-160
800 PSI
4
200-2500 GPM
7
12 in.

B111C-180
800 PSI
4
350-3500 GPM
3
12 in.

B111C-200
800 PSI
4
500-5000 GPM
1.6
12 in.
